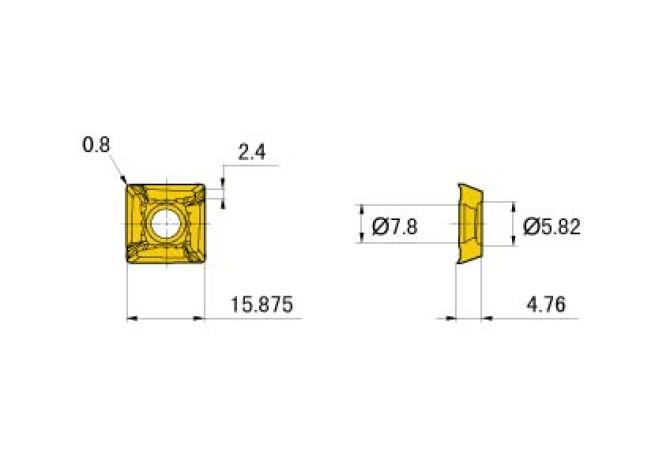

SOMT1504PDER-Q2 HTi20T

Артикул: SOMT1504PDER-Q2 HTi20T

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

15 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.82 mm

Delivery state valid from

4/1/2022

DIN

SO1504PD3R

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT, MILLING, UNCOATED

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

HTi20T

GRDPRIO Standard designation of the grade main application

HW-K20

IC Inscribed circle diameter

15.87 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

15.87 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO1504PD3R

Materials

K,S,H

Name Identifying order number

SOMT1504PDER-Q2 HTi20T

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SOMT1504PDER

TCINS Tolerance class insert

Working process

F - Milling,FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
