SOMT12T308PEER-JH F5020

Артикул: SOMT12T308PEER-JH F5020

В наличии

В корзину

Описание

Характеристики

AS Clearance angle wiper edge

20 Degree

BS Wiper edge length

1.4 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

Besch.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

SO12T3PE3R

EPSR Insert included angle

90 Degree

FamilyProducts

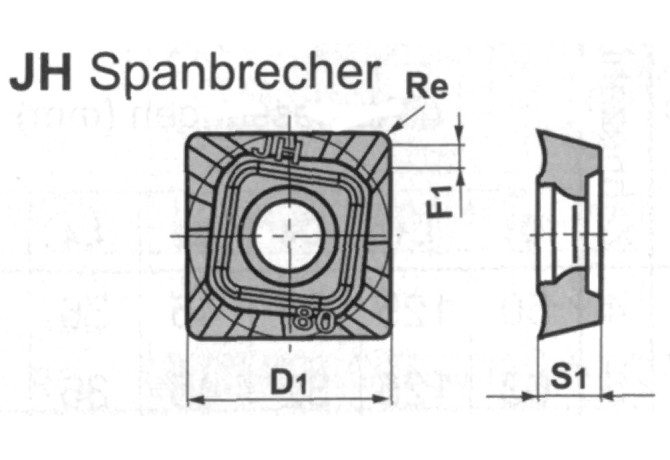

square insert with JH chip breaker

GRDMFG Grade manufacturers designation

F5020

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO12T3PE3R

Materials

Name Identifying order number

SOMT12T308PEER-JH F5020

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SOMT12T308PEER

STDDESAnsi Standard designation ANSI

SOMT42.52PEER

TCINS Tolerance class insert

Working process

F - Milling,FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
