SOMT 160512-DT IC808

Артикул: 5507878

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

DIN

IS-615092102554665

FamilyProducts

Inserts for DR Drills for General Applications at Medium-to-High Feeds

GRDMFG Grade manufacturers designation

IC808

IC Inscribed circle diameter

16 mm

ID Technical product number

5507878

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$615092102554665

ISYC Subclass

201-02 - Square insert

L Cutting edge length

16 mm

LOC-03 ISO

IS$$615092102554665

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-615092102554665

Name Identifying order number

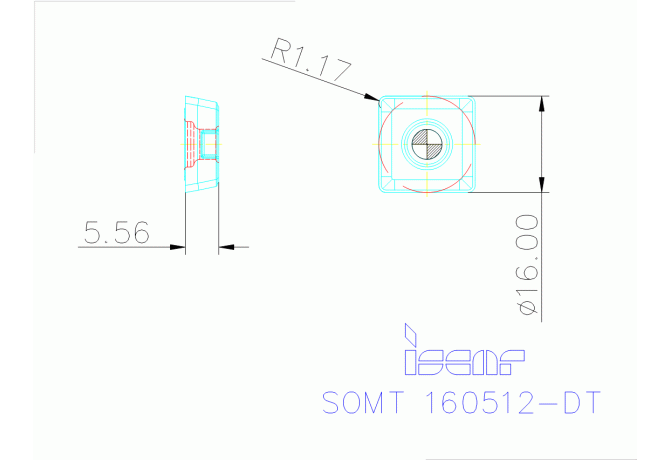

SOMT 160512-DT IC808

RE Corner radius

1.2 mm

S Insert thickness

5.56 mm

Working process

BVB - Drilling,FEC - Square shoulder milling

WT Weight of item

0.01 kg
