Главная Каталог продукции Toolunited 16 201-02 - Square insert SOMT 100408-DT IC808

SOMT 100408-DT IC808

Артикул: 5507941

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

DIN

IS-150921757597889

FamilyProducts

Inserts for DR Drills for General Applications at Medium-to-High Feeds

GRDMFG Grade manufacturers designation

IC808

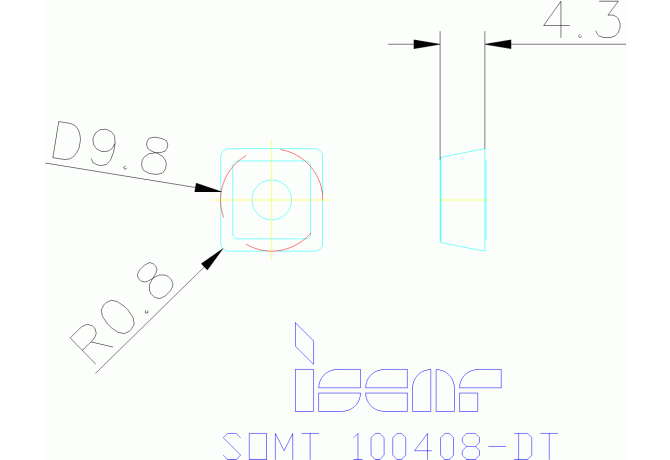

IC Inscribed circle diameter

9.8 mm

ID Technical product number

5507941

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$150921757597889

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.8 mm

LOC-03 ISO

IS$$150921757597889

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-150921757597889

Name Identifying order number

SOMT 100408-DT IC808

RE Corner radius

0.8 mm

S Insert thickness

4.3 mm

Working process

BVB - Drilling,FEC - Square shoulder milling
