Главная Каталог продукции Toolunited 16 201-02 - Square insert SOMT 09T306-HD IC808

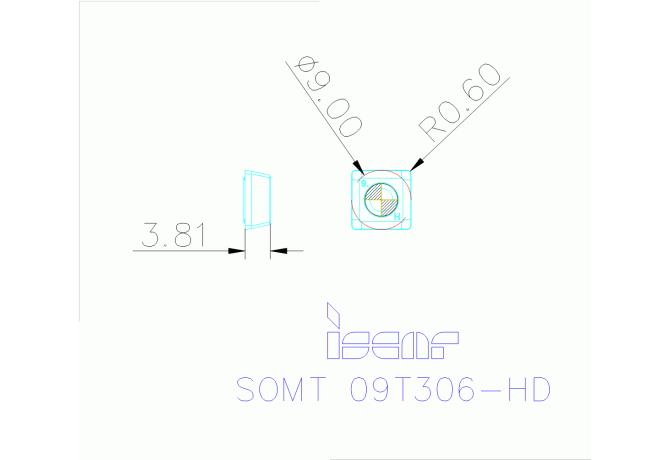

SOMT 09T306-HD IC808

Артикул: 5510161

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

DIN

IS-697954365920532

FamilyProducts

Inserts for DR Drills for Carbon Steel and Soft Materials

GRDMFG Grade manufacturers designation

IC808

IC Inscribed circle diameter

9 mm

ID Technical product number

5510161

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$697954365920532

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9 mm

LOC-03 ISO

IS$$697954365920532

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-697954365920532

Name Identifying order number

SOMT 09T306-HD IC808

RE Corner radius

0.6 mm

S Insert thickness

3.81 mm

Working process

BVB - Drilling,FEC - Square shoulder milling
