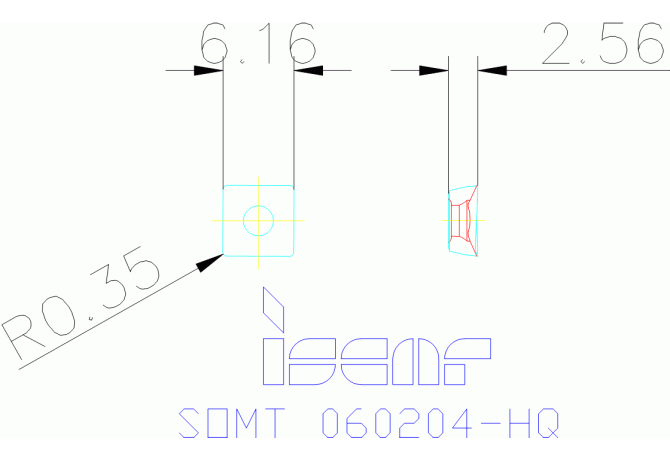

SOMT 060204-HQ IC950

Артикул: 5601882

В наличии

В корзину

Описание

Характеристики

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

DIN

IS-356987928173142

EPSR Insert included angle

90 Degree

FamilyProducts

Square Milling Inserts for General Use

GRDMFG Grade manufacturers designation

IC950

IC Inscribed circle diameter

6.16 mm

ID Technical product number

5601882

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$356987928173142

ISYC Subclass

201-02 - Square insert

L Cutting edge length

6.16 mm

LOC-03 ISO

IS$$356987928173142

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-356987928173142

Name Identifying order number

SOMT 060204-HQ IC950

RE Corner radius

0.4 mm

S Insert thickness

2.56 mm

Working process

No working processes available
