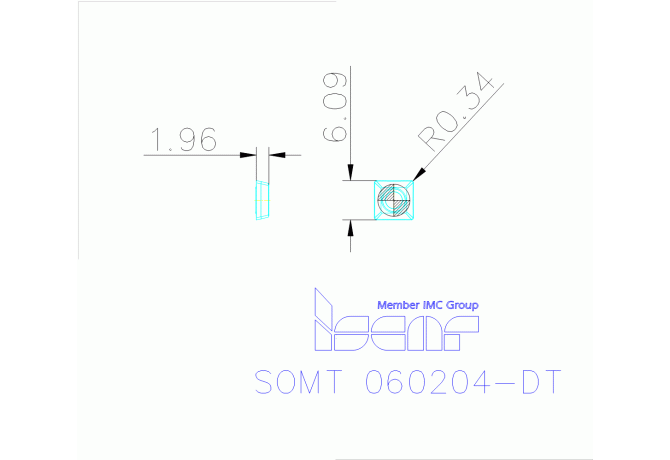

SOMT 060204-DT IC908

Артикул: 5504858

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-51208774477760

FamilyProducts

Inserts for DR Drills for General Applications at Medium-to-High Feeds

GRDMFG Grade manufacturers designation

IC908

IC Inscribed circle diameter

6 mm

ID Technical product number

5504858

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$51208774477760

ISYC Subclass

201-02 - Square insert

L Cutting edge length

6 mm

LOC-03 ISO

IS$$51208774477760

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-51208774477760

Name Identifying order number

SOMT 060204-DT IC908

RE Corner radius

0.4 mm

S Insert thickness

1.96 mm

Working process

No working processes available
