SOGT 09T306-W IC808

Артикул: 5510344

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

DIN

IS-41412804590484

FamilyProducts

Precision Ground Inserts for MNC Drills with DT General Use Chipformer and a Wiper

GRDMFG Grade manufacturers designation

IC808

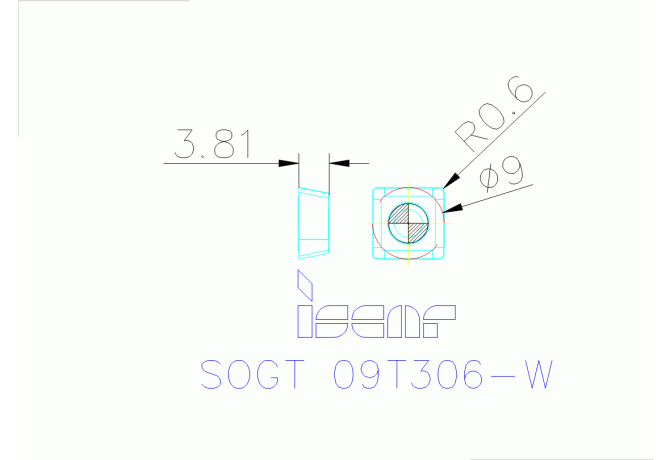

IC Inscribed circle diameter

9 mm

ID Technical product number

5510344

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$41412804590484

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9 mm

LOC-03 ISO

IS$$41412804590484

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-41412804590484

Name Identifying order number

SOGT 09T306-W IC808

RE Corner radius

0.6 mm

S Insert thickness

3.81 mm

Working process

BVB - Drilling
