Главная Каталог продукции Toolunited 16 201-02 - Square insert SOET12T308PEER-JL VP45N

SOET12T308PEER-JL VP45N

Артикул: SOET12T308PEER-JL VP45N

В наличии

В корзину

Описание

Характеристики

AS Clearance angle wiper edge

20 Degree

BS Wiper edge length

1.4 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

VP-Miracle

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

SO12T3PE3R

EPSR Insert included angle

90 Degree

FamilyProducts

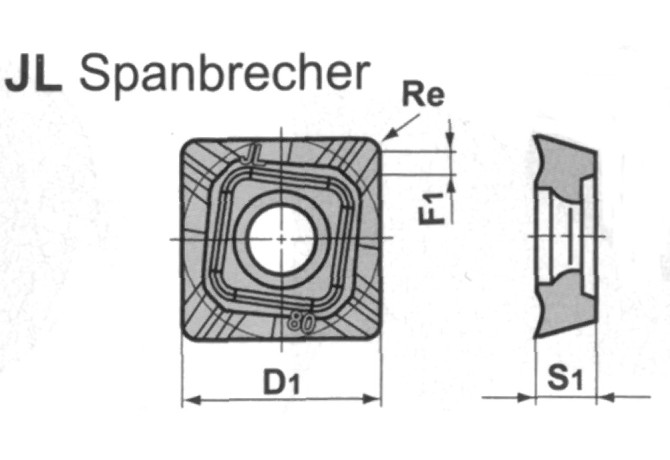

square insert with JL chip breaker

GRD2ND Standard designation of the grade 2nd application

HT-P25

GRD3RD Standard designation of the grade 3rd application

HT-P30

GRDMFG Grade manufacturers designation

VP45N

GRDPRIO Standard designation of the grade main application

HT-P20

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SOET12T308PEER-JL VP45N

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO12T3PE3R

Name Identifying order number

SOET12T308PEER-JL VP45N

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SOET12T308PEER

STDDESAnsi Standard designation ANSI

SOET12T308PEER-JL

TCINS Tolerance class insert

Working process

F - Milling,FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling

WT Weight of item

0.043 kg
