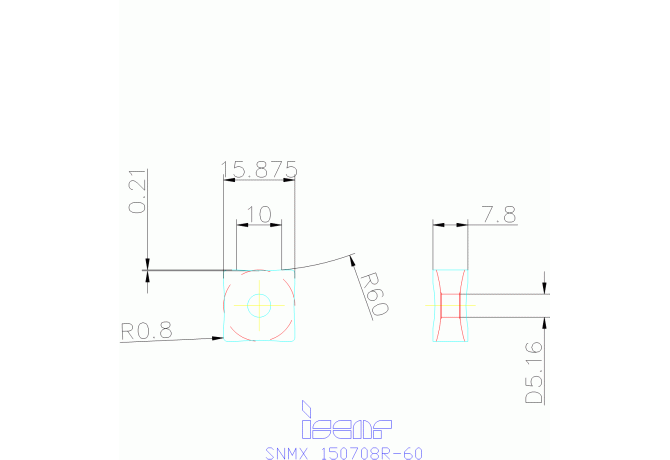

SNMX 150708R-60 IC8150

Артикул: 5508708

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

COATN Coating / Покрытие

CVD

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

SN1507083R

EPSR Insert included angle

90 Degree

FamilyProducts

SNMX 150708R-60 IC8150

GRD2ND Standard designation of the grade 2nd application

HC-P01

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

IC8150

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

15.87 mm

ID Technical product number

5508708

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

15.87 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1507083R

Name Identifying order number

SNMX 150708R-60 IC8150

S Insert thickness

7.8 mm

S1 Insert thickness total

7.8 mm

TCINS Tolerance class insert

Working process

No working processes available
