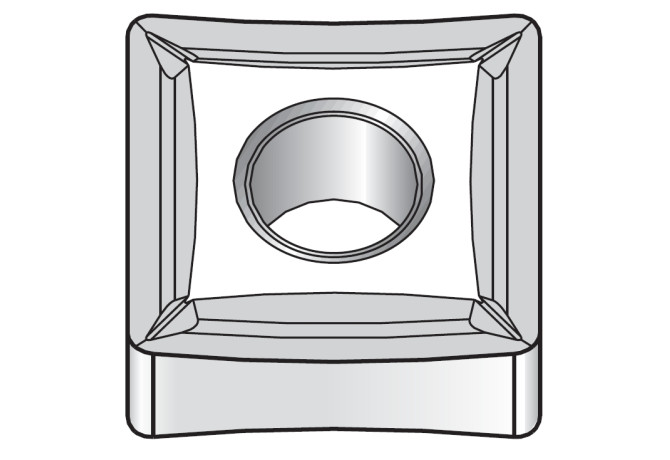

SNMP120412 WS25PT

Артикул: 4172619

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

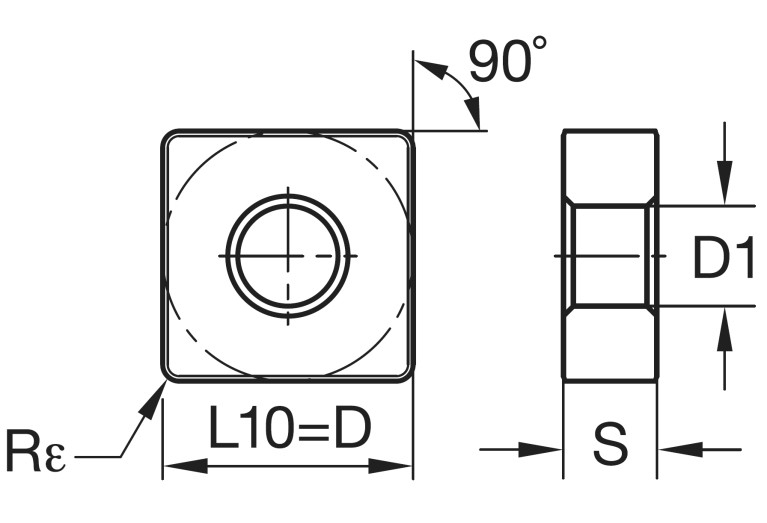

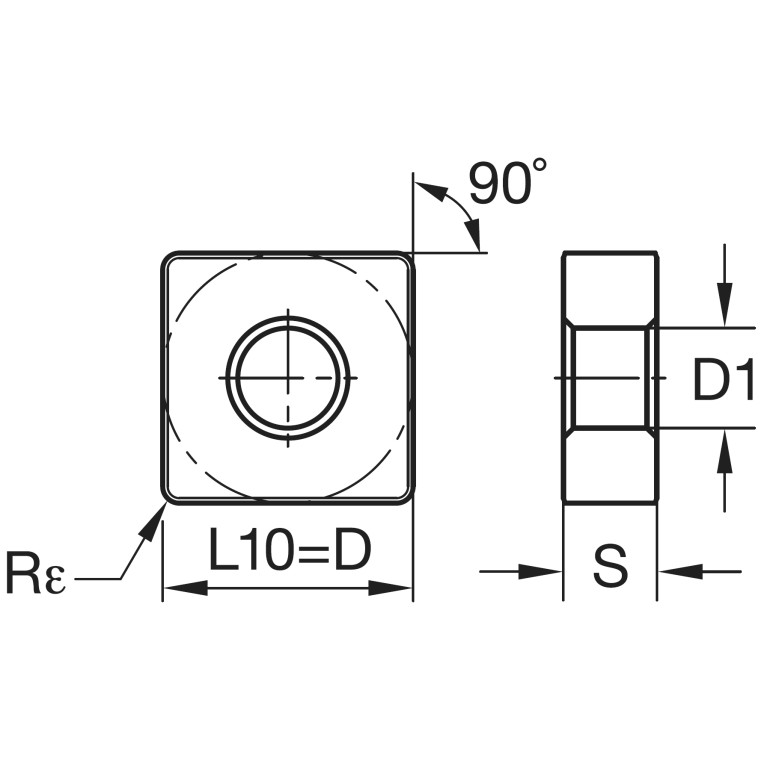

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

6/5/2012

DIN

SN1204122N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert for turning, negative, SNMP

GRDMFG Grade manufacturers designation

WS25PT

IC Inscribed circle diameter

12.7 mm

ID Technical product number

4172619

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1204122N

Materials

Name Identifying order number

SNMP120412 WS25PT

NameAnsi Identifying order number inch alternative

SNMP433 WS25PT

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNMP120412

STDDESAnsi Standard designation ANSI

SNMP433

TCINS Tolerance class insert

Working process

No working processes available
