Главная Каталог продукции Toolunited 16 201-02 - Square insert SNMN120416 F7030

SNMN120416 F7030

Артикул: SNMN120416 F7030

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

SN1204161N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for turning SNMN

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M10

GRD3RD Standard designation of the grade 3rd application

HC-P30

GRDMFG Grade manufacturers designation

F7030

GRDPRIO Standard designation of the grade main application

HC-P10

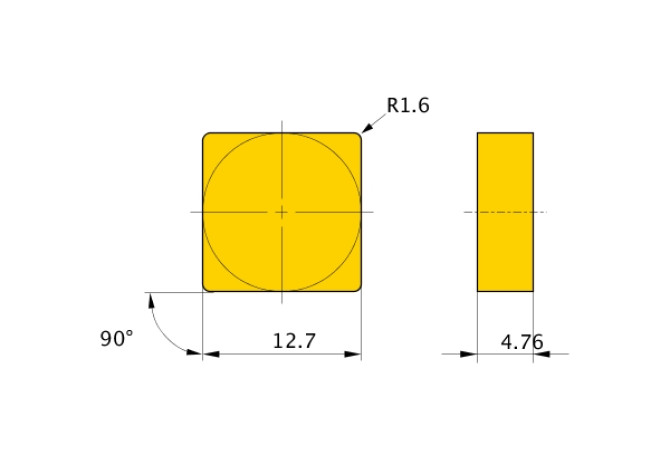

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SNMN120416 F7030

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1204161N

Name Identifying order number

SNMN120416 F7030

RE Corner radius

1.6 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNMN120416

STDDESAnsi Standard designation ANSI

SNMN434

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning

WT Weight of item

0.011 kg
