SNMN 120316 SD KB90A

Артикул: 5400872

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

CBN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

SN1203161N

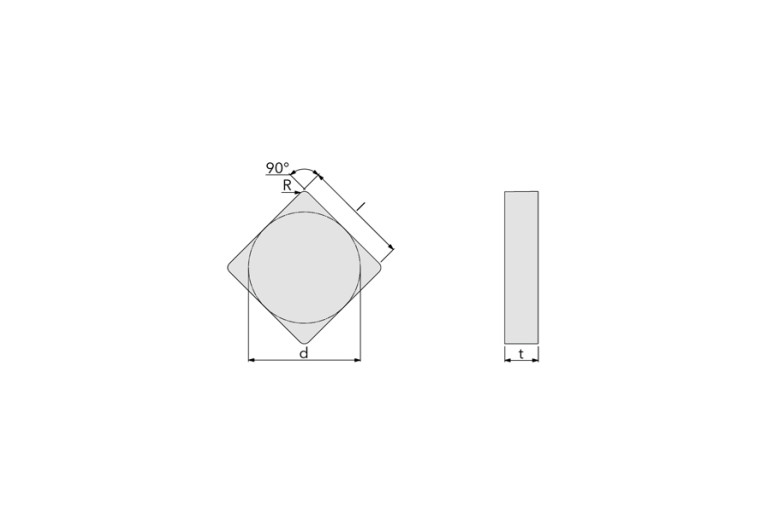

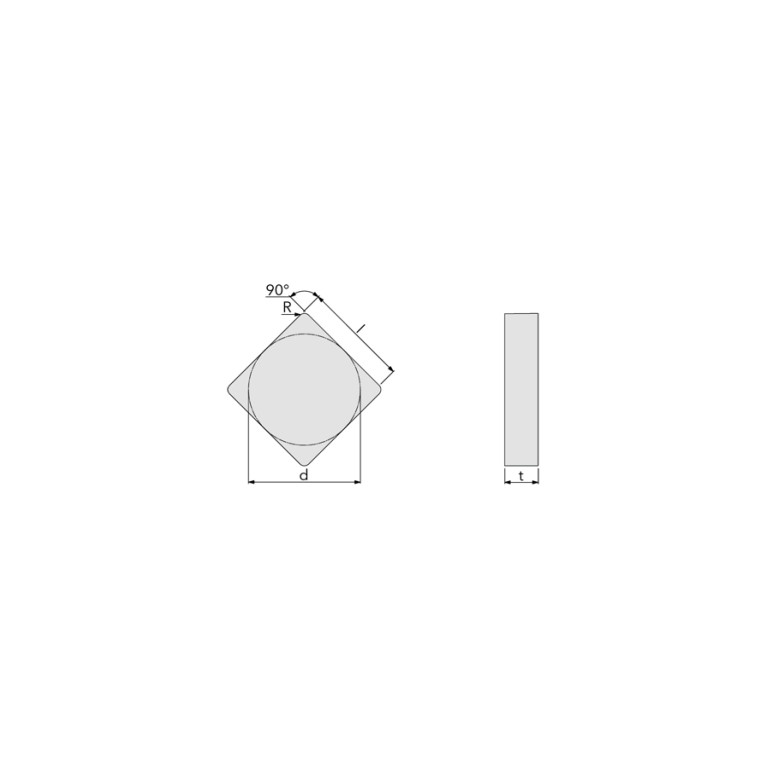

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Negative 90° CBN Insert for high speed machining

GRD2ND Standard designation of the grade 2nd application

K10-K25

GRDMFG Grade manufacturers designation

KB90A

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5400872

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

11.1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1203161N

Name Identifying order number

SNMN 120316 SD KB90A

RE Corner radius

1.6 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SNMN120316

STDDESAnsi Standard designation ANSI

SNMN424

TCINS Tolerance class insert

Working process

No working processes available
