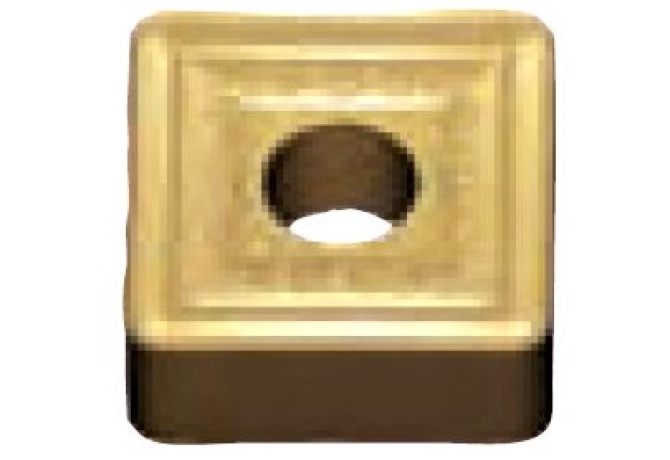

SNMM250924-HCS US735

Артикул: SNMM250924-HCS US735

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BN Face land width

0.9 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

HCS

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating / Покрытие

Ti-Verb.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

9.12 mm

Delivery state valid from

4/1/2022

DIN

SN2509242N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for turning SNMM-HCS, heavy cutting

GAN Insert rake angle

15 Degree

GB Face land angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRD3RD Standard designation of the grade 3rd application

HC-P40

GRDMFG Grade manufacturers designation

US735

GRDPRIO Standard designation of the grade main application

HC-M30

IC Inscribed circle diameter

25.4 mm

ID Technical product number

SNMM250924-HCS US735

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

25.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2509242N

Name Identifying order number

SNMM250924-HCS US735

RE Corner radius

2.4 mm

S Insert thickness

9.52 mm

S1 Insert thickness total

9.52 mm

STDDES Standard designation

SNMM250924

STDDESAnsi Standard designation ANSI

SNMM866

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
