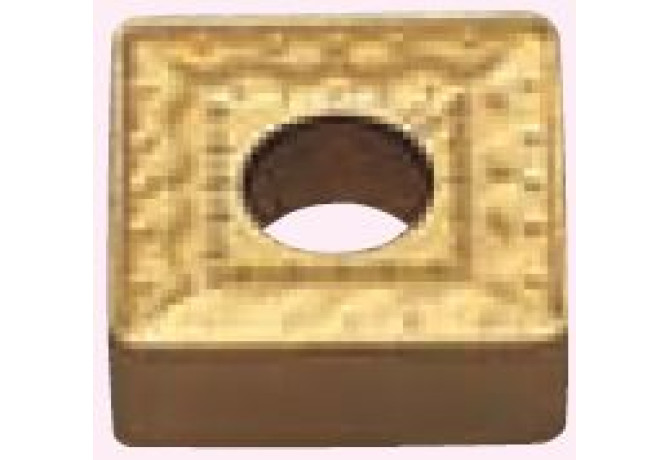

SNMM250732-HX UE6020

Артикул: SNMM250732-HX UE6020

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

BN Face land width

0.43 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

K - Doublechamfered

COATN Coating / Покрытие

TiCN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

9.12 mm

Delivery state valid from

4/1/2022

DIN

SN2507322N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for turning SNMM-HX, heavy cutting

GAN Insert rake angle

23 Degree

GB Face land angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRDMFG Grade manufacturers designation

UE6020

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

25.4 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

25.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2507322N

Materials

Name Identifying order number

SNMM250732-HX UE6020

RE Corner radius

3.2 mm

S Insert thickness

7.94 mm

S1 Insert thickness total

7.94 mm

STDDES Standard designation

SNMM250732

STDDESAnsi Standard designation ANSI

SNMM858

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
