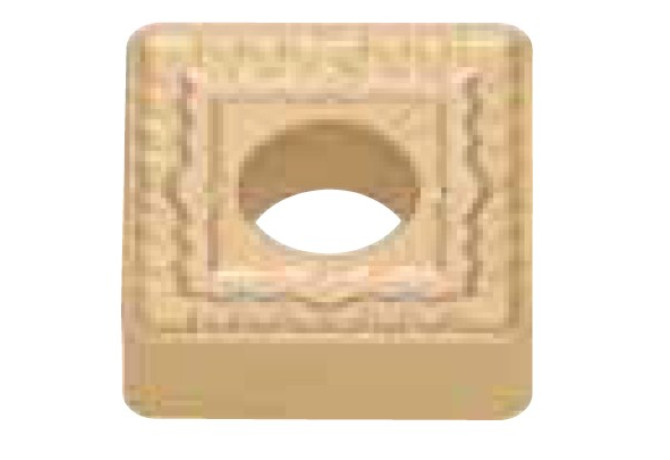

SNMM250724-TUS T9125

Артикул: SNMM250724-TUS T9125

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BN Face land width

0.45 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

TUS

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

MT-CVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

9.12 mm

Delivery state valid from

4/1/2013

DIN

SN2507242N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for heavy turning of steel

GAN Insert rake angle

20 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRDMFG Grade manufacturers designation

T9125

GRDPRIO Standard designation of the grade main application

HC-P20

IC Inscribed circle diameter

25.4 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

25.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2507242N

Materials

Name Identifying order number

SNMM250724-TUS T9125

NameAnsi Identifying order number inch alternative

SNMM 856 TUS T9125

RE Corner radius

2.4 mm

S Insert thickness

7.94 mm

S1 Insert thickness total

7.94 mm

STDDES Standard designation

SNMM250724

STDDESAnsi Standard designation ANSI

SNMM856

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
