SNMM250724-TU T9005

Артикул: SNMM250724-TU T9005

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

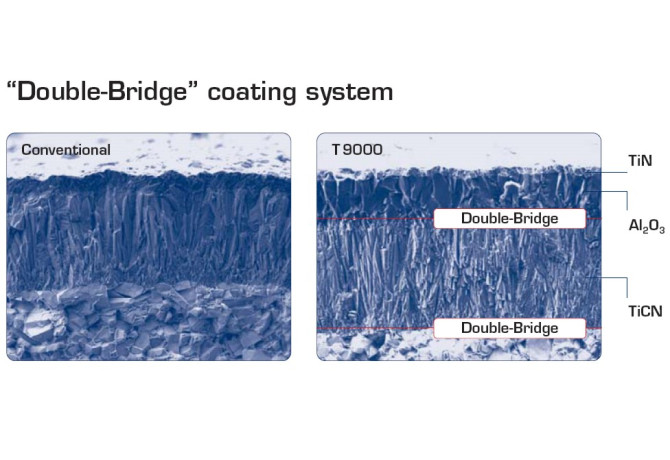

COATN Coating / Покрытие

MT-CVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

9.12 mm

Delivery state valid from

8/1/2012

DIN

SN2507 2N

EPSR Insert included angle

90 Degree

FamilyProducts

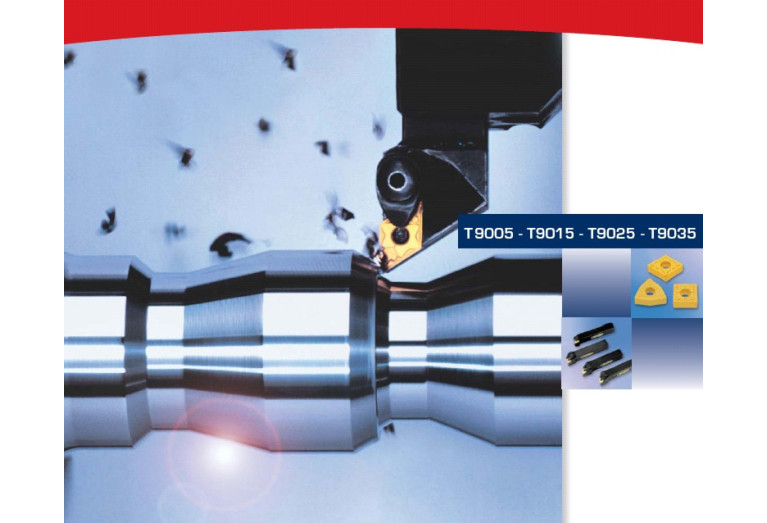

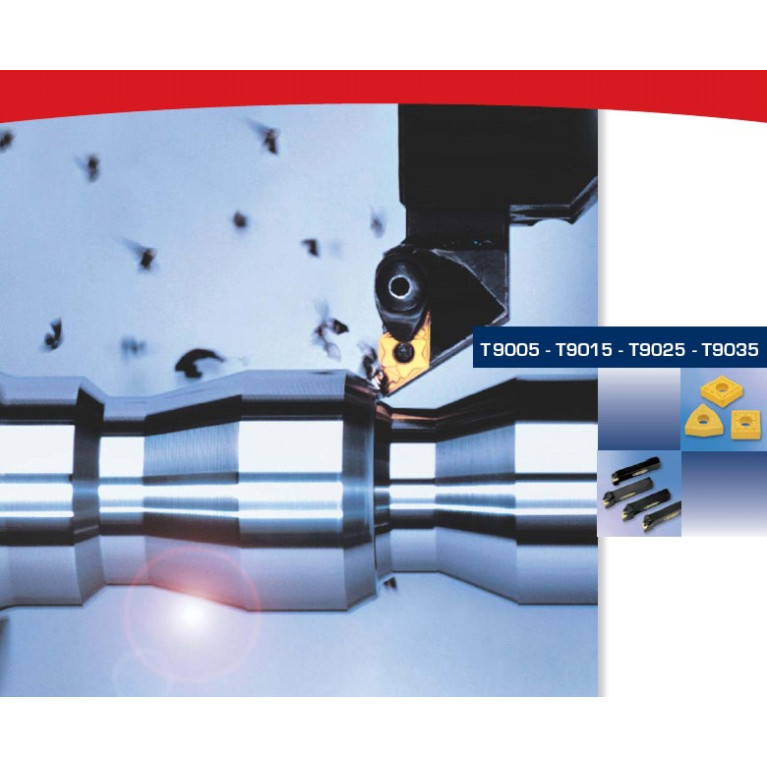

insert for turning SNMM, TU breaker

GRD2ND Standard designation of the grade 2nd application

HC-P10

GRDMFG Grade manufacturers designation

T9005

GRDPRIO Standard designation of the grade main application

HC-P05

IC Inscribed circle diameter

25.4 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

25.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2507 2N

Name Identifying order number

SNMM250724-TU T9005

RE Corner radius

2.4 mm

STDDES Standard designation

SNMM250724

STDDESAnsi Standard designation ANSI

SNMM856

TCINS Tolerance class insert

Working process

DDA - External turning
