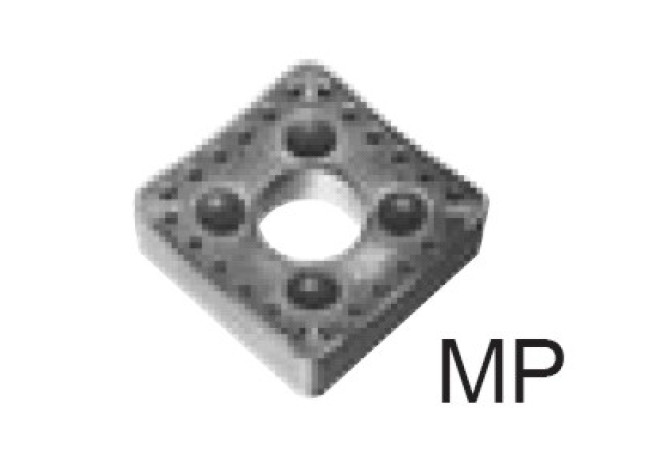

SNMM190612 NMP AC3000

Артикул: SNMM190612 NMP AC3000

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

NMP

COATN Coating / Покрытие

Al2O3+TiCN

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

7.94 mm

Delivery state valid from

7/1/2021

DIN

SN1906122N

EPSR Insert included angle

90 Degree

FamilyProducts

negative insert for turning, SNMM-NMP

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-P40

GRDMFG Grade manufacturers designation

AC3000

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

19.05 mm

ID Technical product number

SNMM190612 NMP AC3000

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

19.05 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1906122N

Materials

P,M

Name Identifying order number

SNMM190612 NMP AC3000

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMM190612

STDDESAnsi Standard designation ANSI

SNMM643

TCINS Tolerance class insert

Working process

No working processes available
