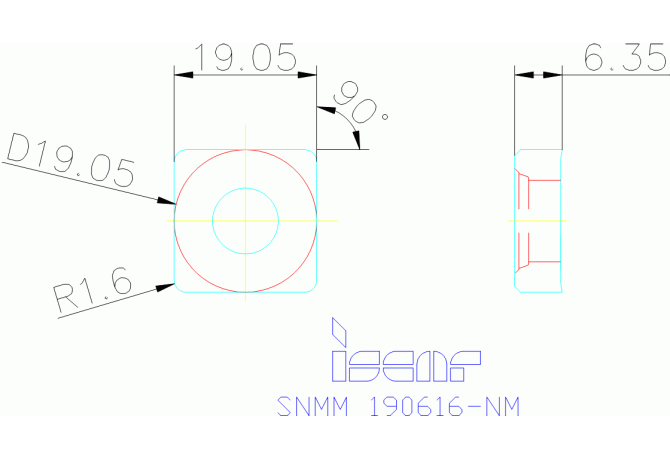

SNMM 190616-NM IC9350

Артикул: 5507601

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiN-TiCN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

SN1906162N

EPSR Insert included angle

90 Degree

FamilyProducts

SNMM 190616-NM IC9350

GAN Insert rake angle

15 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P20

GRD3RD Standard designation of the grade 3rd application

HC-M30

GRDMFG Grade manufacturers designation

IC9350

GRDPRIO Standard designation of the grade main application

HC-P45

IC Inscribed circle diameter

19.05 mm

ID Technical product number

5507601

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

19.05 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1906162N

Name Identifying order number

SNMM 190616-NM IC9350

RE Corner radius

1.6 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMM190616

STDDESAnsi Standard designation ANSI

SNMM644

TCINS Tolerance class insert

Working process

No working processes available
