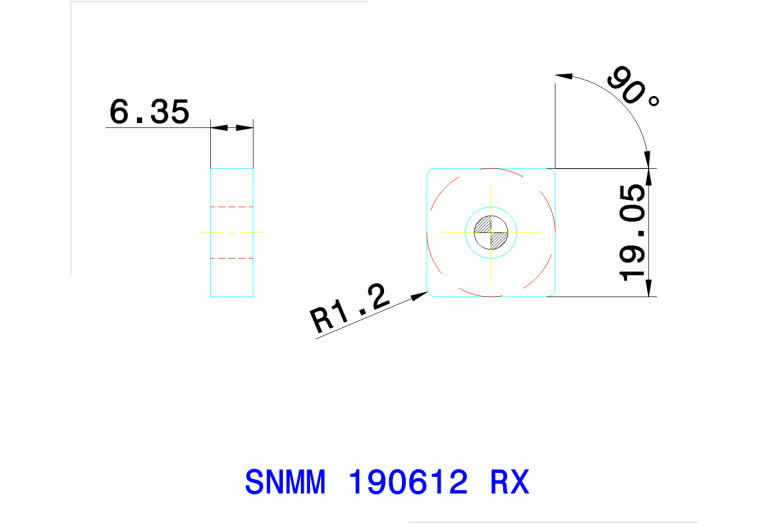

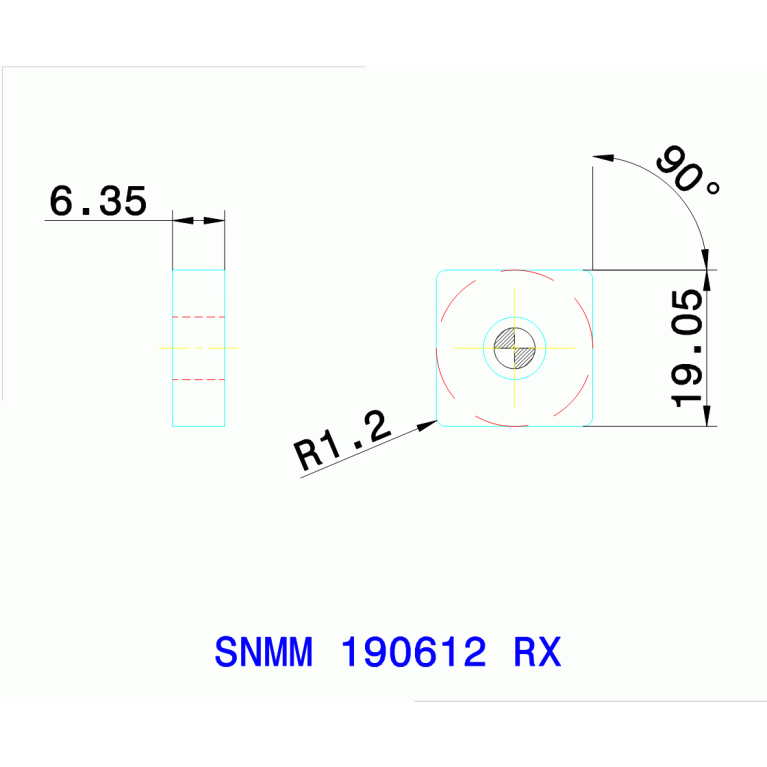

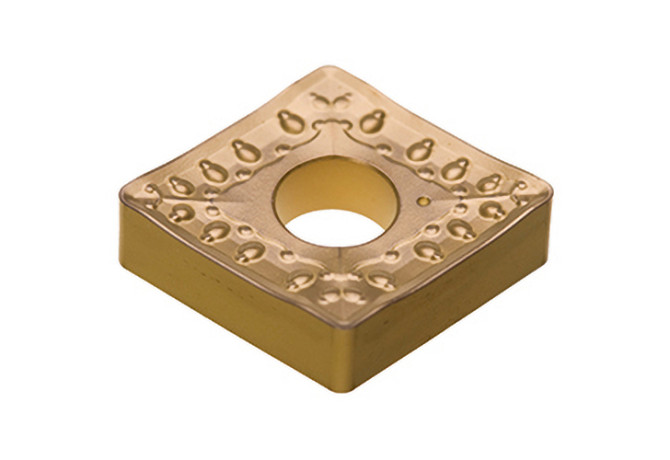

SNMM 190612 RX TT8125

Артикул: 5522039

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

SN1906122N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Negative 90° square inserts for roughing / steel

GRDMFG Grade manufacturers designation

TT8125

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

19.05 mm

ID Technical product number

5522039

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

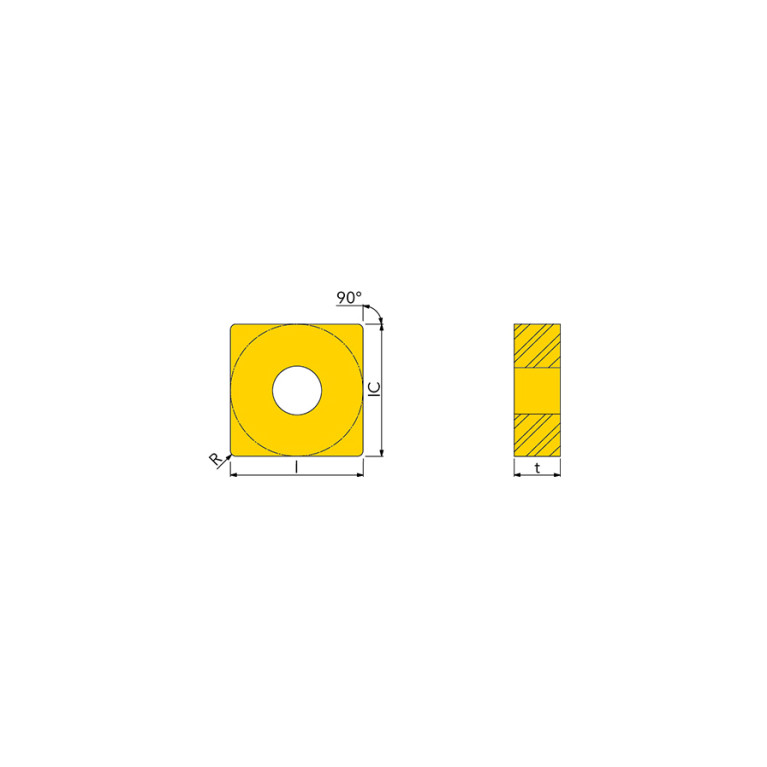

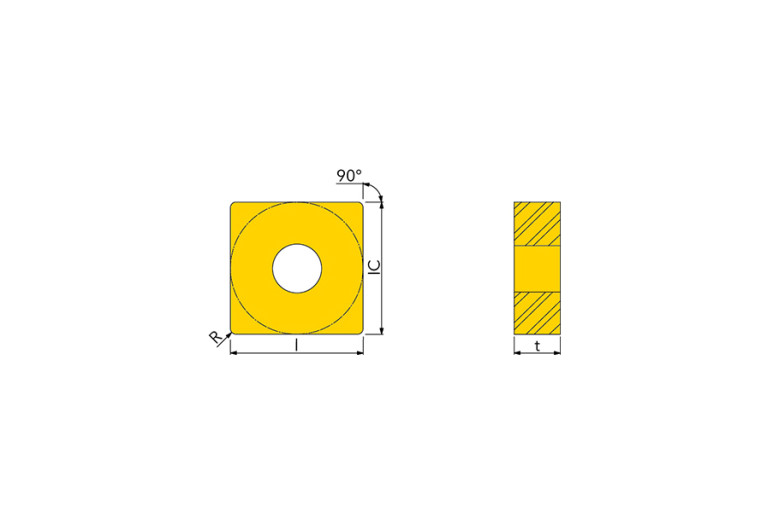

201-02 - Square insert

L Cutting edge length

17.8 mm

LE Cutting edge effective length

5.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1906122N

MIID Master insert identification

SNMM190612 TT8125

Name Identifying order number

SNMM 190612 RX TT8125

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMM190612

STDDESAnsi Standard designation ANSI

SNMM643

TCINS Tolerance class insert

Working process

No working processes available
