SNMG250924-GH UE6110

Артикул: SNMG250924-GH UE6110

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

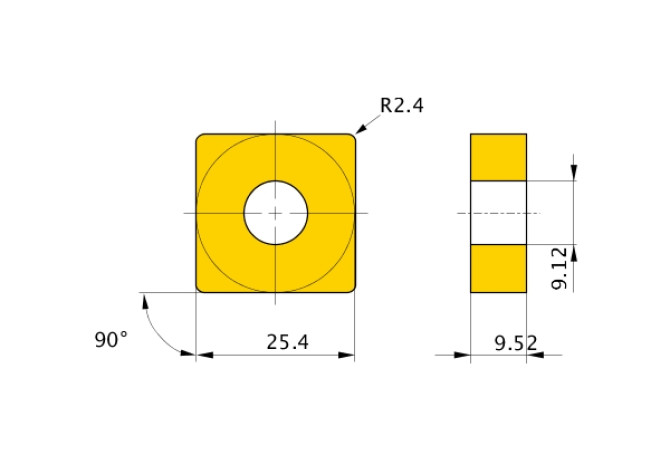

D1 Fixing hole diameter

9.12 mm

Delivery state valid from

4/1/2022

DIN

SN2509242N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for turning SNMG-GH, semi-heavy cutting

GRD2ND Standard designation of the grade 2nd application

HC-P20

GRDMFG Grade manufacturers designation

UE6110

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

25.4 mm

ID Technical product number

SNMG250924-GH UE6110

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

25.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2509242N

Name Identifying order number

SNMG250924-GH UE6110

RE Corner radius

2.4 mm

S Insert thickness

9.52 mm

S1 Insert thickness total

9.52 mm

STDDES Standard designation

SNMG250924

STDDESAnsi Standard designation ANSI

SNMG866GH

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.082 kg
