Главная Каталог продукции Toolunited 16 201-02 - Square insert SNMG250716-THS T9125

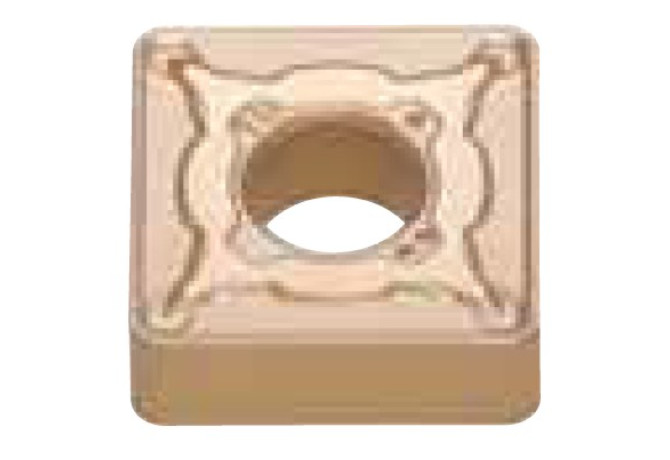

SNMG250716-THS T9125

Артикул: SNMG250716-THS T9125

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BN Face land width

0.4 mm

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

THS

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

MT-CVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

9.12 mm

Delivery state valid from

4/1/2013

DIN

SN2507162N

EPSR Insert included angle

90 Degree

FamilyProducts

Tungaloy turning insert SNMG-THS

GAN Insert rake angle

20 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRDMFG Grade manufacturers designation

T9125

GRDPRIO Standard designation of the grade main application

HC-P20

IC Inscribed circle diameter

25.4 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

25.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2507162N

Materials

Name Identifying order number

SNMG250716-THS T9125

NameAnsi Identifying order number inch alternative

SNMG 854 THS T9125

RE Corner radius

1.6 mm

S Insert thickness

7.94 mm

S1 Insert thickness total

7.94 mm

STDDES Standard designation

SNMG250716

STDDESAnsi Standard designation ANSI

SNMG854

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
