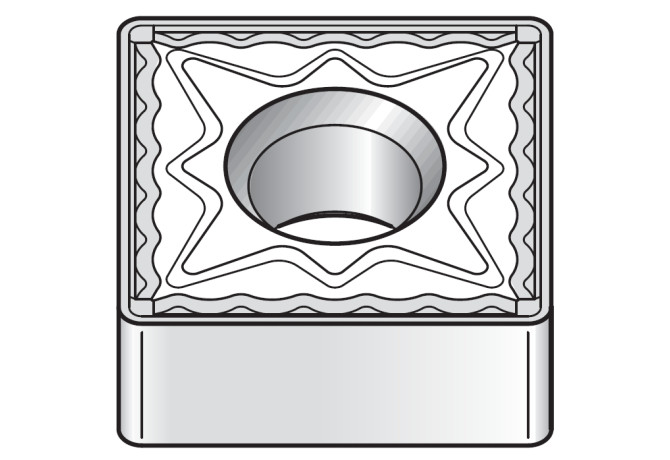

SNMG1906126P TN30M

Артикул: 4166821

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

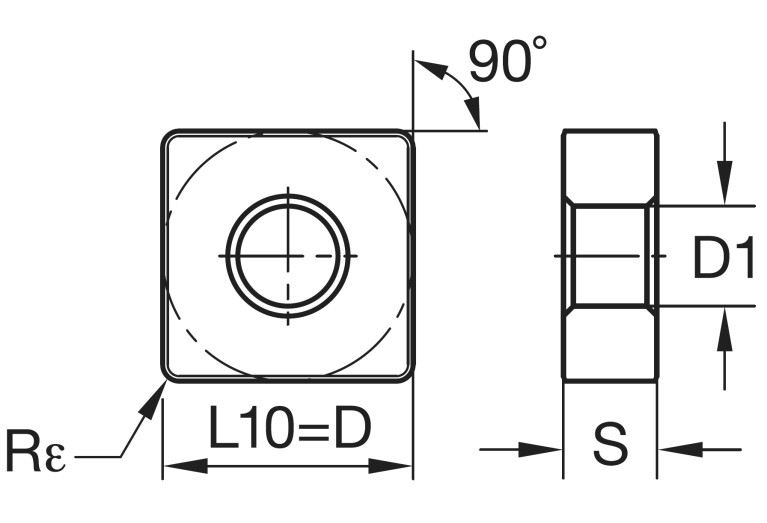

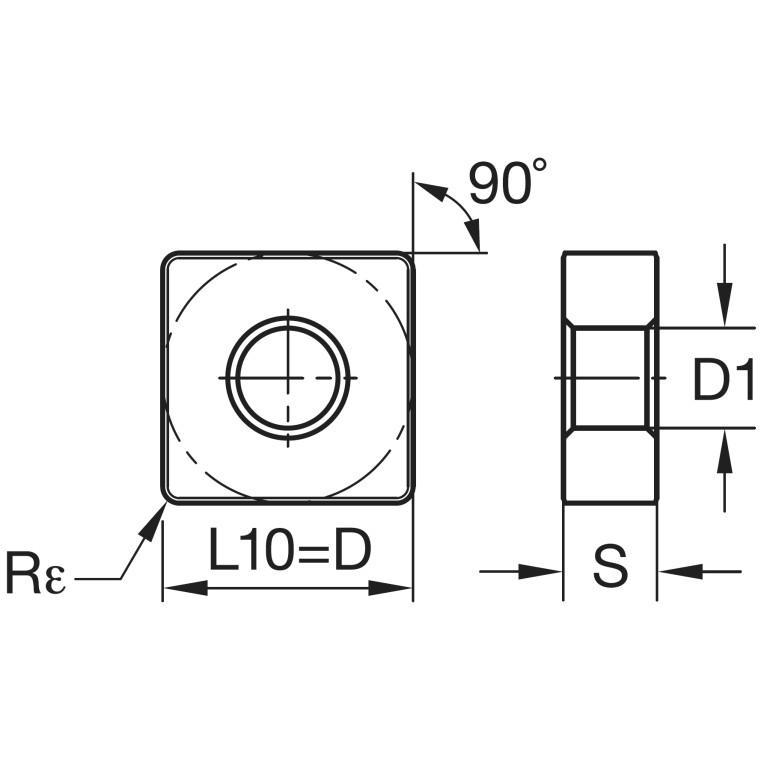

D1 Fixing hole diameter

7.93 mm

Delivery state valid from

6/5/2012

DIN

SN1906122N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert for turning, negative, SNMG-6P

GRDMFG Grade manufacturers designation

TN30M

IC Inscribed circle diameter

19.05 mm

ID Technical product number

4166821

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

19.05 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1906122N

Materials

Name Identifying order number

SNMG1906126P TN30M

NameAnsi Identifying order number inch alternative

SNMG6436P TN30M

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMG190612

STDDESAnsi Standard designation ANSI

SNMG643

TCINS Tolerance class insert

Working process

No working processes available
