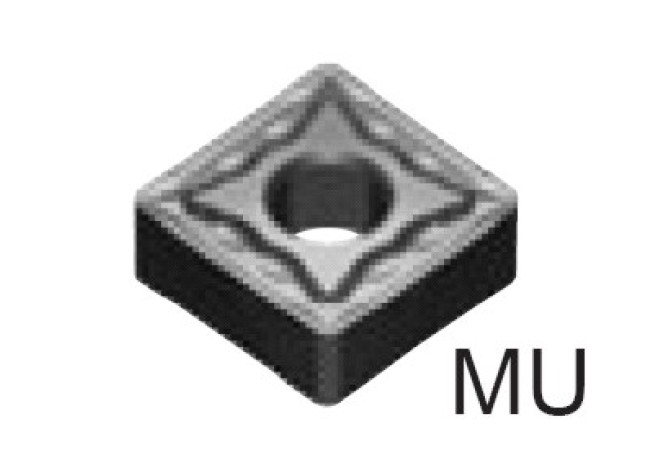

SNMG190612 NMU AC900G

Артикул: SNMG190612 NMU AC900G

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BN Face land width

0.3 mm

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

NMU

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

7.94 mm

Delivery state valid from

1/1/2005

DIN

SN1906122N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, solid carbide, SNMG-NMU

GB Face land angle

4 Degree

GRD2ND Standard designation of the grade 2nd application

HC-K10

GRD3RD Standard designation of the grade 3rd application

HC-K01

GRDMFG Grade manufacturers designation

AC900G

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

19.05 mm

ID Technical product number

SNMG190612 NMU AC900G

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

19.05 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1906122N

Materials

P,K

Name Identifying order number

SNMG190612 NMU AC900G

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMG190612

STDDESAnsi Standard designation ANSI

SNMG643

TCINS Tolerance class insert

Working process

No working processes available
