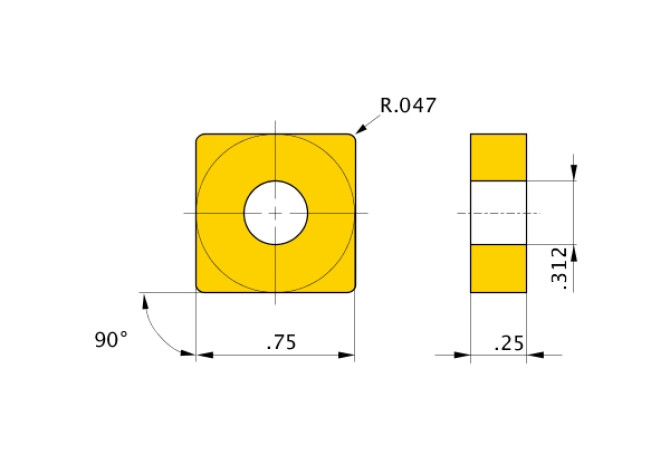

SNMG190612-MH UC5115

Артикул: 356040

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

7.93 mm

Delivery state valid from

4/1/2022

DIN

MI-SN1906 2N

EPSR Insert included angle

90 Degree

FamilyProducts

turning inserts

GRDMFG Grade manufacturers designation

UC5115

IC Inscribed circle diameter

19.05 mm

ID Technical product number

356040

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

19.05 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MI-SN1906 2N

Name Identifying order number

SNMG190612-MH UC5115

NameAnsi Identifying order number inch alternative

SNMG643MH

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

TCINS Tolerance class insert

Working process

No working processes available
