SNMG190612-MA UH6400

Артикул: SNMG190612-MA UH6400

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

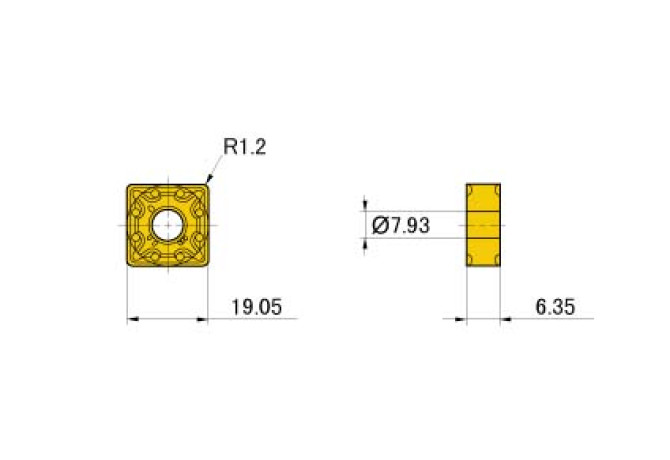

D1 Fixing hole diameter

7.93 mm

Delivery state valid from

4/1/2022

DIN

SN1906122N

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT, TURNING (negative), SNMG-MA

GRD2ND Standard designation of the grade 2nd application

HC-P40

GRDMFG Grade manufacturers designation

UH6400

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

19.05 mm

ID Technical product number

SNMG190612-MA UH6400

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

19.05 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1906122N

Materials

Name Identifying order number

SNMG190612-MA UH6400

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMG190612

STDDESAnsi Standard designation ANSI

SNMG643MA

TCINS Tolerance class insert

Working process

No working processes available
