SNMG190608RH WP35CT

Артикул: 4171721

В наличии

В корзину

Описание

Характеристики

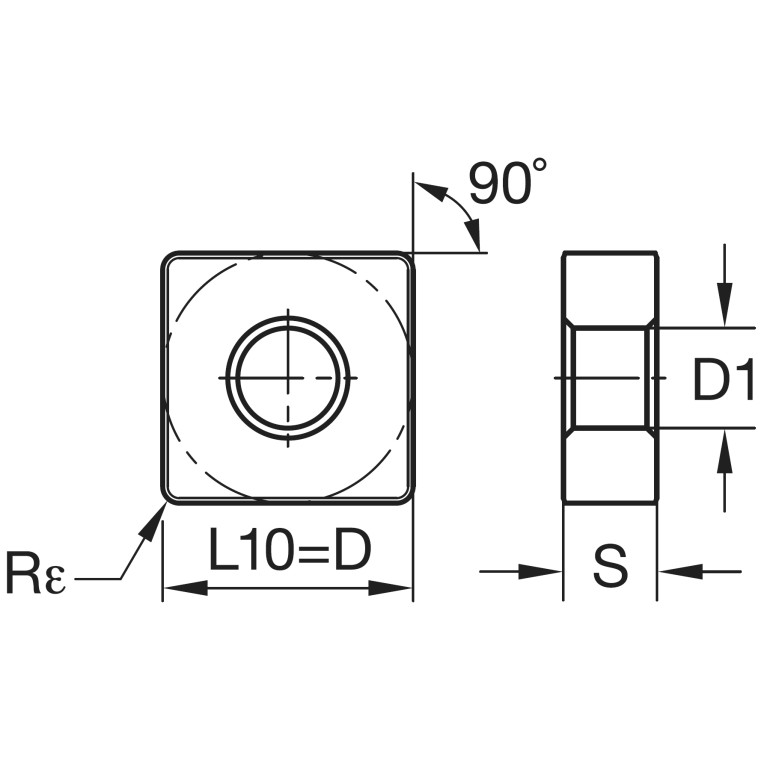

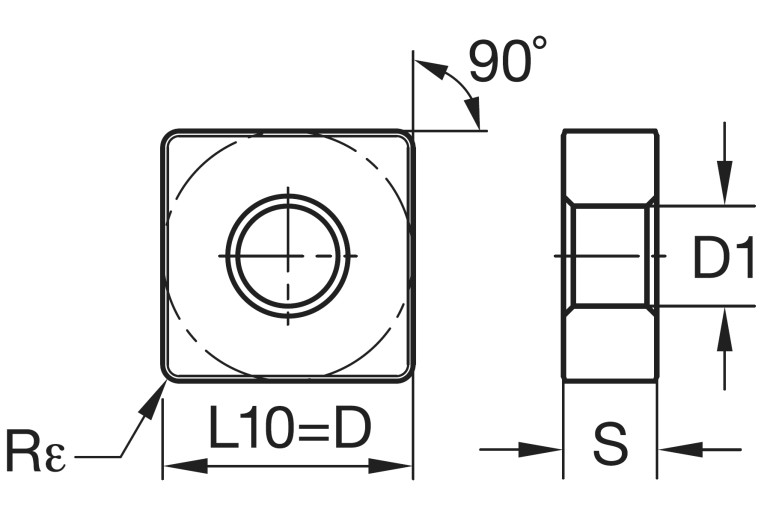

AN Clearance angle major

0 Degree

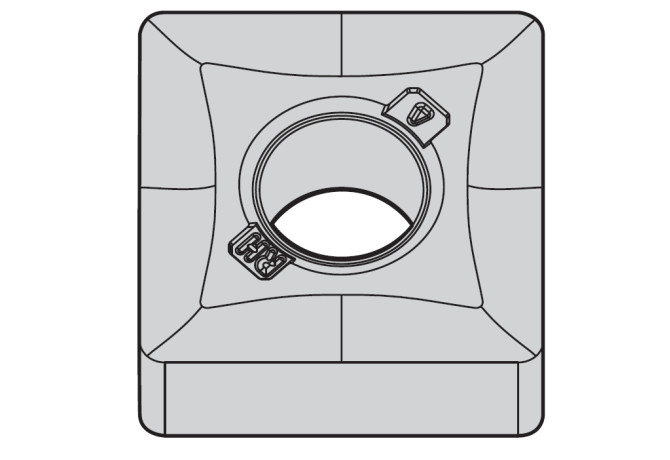

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

7.93 mm

Delivery state valid from

6/5/2012

DIN

SN1906082N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert for turning, negative, SNMG-RH

GRDMFG Grade manufacturers designation

WP35CT

IC Inscribed circle diameter

19.05 mm

ID Technical product number

4171721

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

19.05 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1906082N

Materials

P,M

Name Identifying order number

SNMG190608RH WP35CT

NameAnsi Identifying order number inch alternative

SNMG642RH WP35CT

RE Corner radius

0.8 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMG190608

STDDESAnsi Standard designation ANSI

SNMG642

TCINS Tolerance class insert

Working process

No working processes available
