SNMG190608-5 TN5120

Артикул: 123661834

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

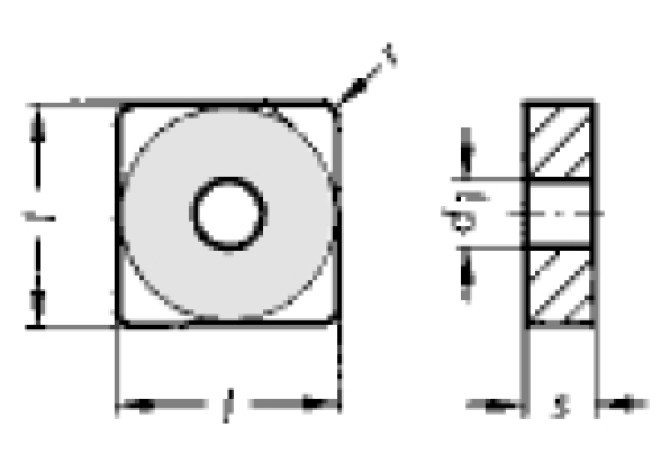

D1 Fixing hole diameter

7.94 mm

Delivery state valid from

3/1/2010

DIN

SN1906082N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert SNM

GRDMFG Grade manufacturers designation

TN5120

IC Inscribed circle diameter

19.05 mm

ID Technical product number

123661834

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

19.05 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1906082N

Materials

Name Identifying order number

SNMG190608-5 TN5120

NameAnsi Identifying order number inch alternative

SNMG642-5 TN5120

RE Corner radius

0.8 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMG190608

STDDESAnsi Standard designation ANSI

SNMG642

TCINS Tolerance class insert

Working process

No working processes available
