Главная Каталог продукции Toolunited 16 201-02 - Square insert SNMG150616-MT UC6025

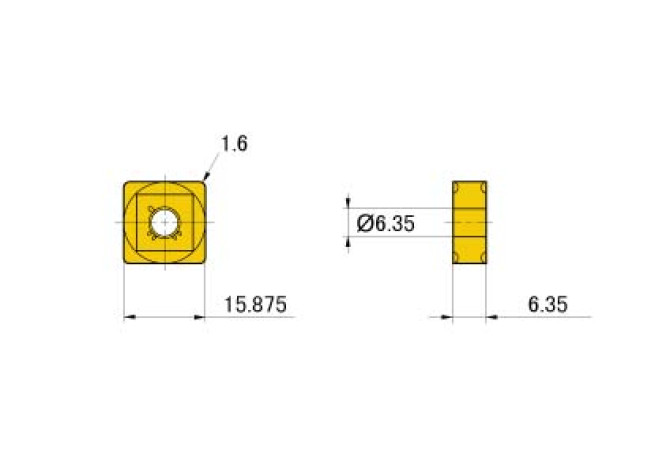

SNMG150616-MT UC6025

Артикул: SNMG150616-MT UC6025

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6.35 mm

Delivery state valid from

4/1/2022

DIN

SN1506162N

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT, TURNING, COATED

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRDMFG Grade manufacturers designation

UC6025

GRDPRIO Standard designation of the grade main application

HC-P20

IC Inscribed circle diameter

15.87 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

15.87 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1506162N

Materials

Name Identifying order number

SNMG150616-MT UC6025

RE Corner radius

1.6 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMG150616

STDDESAnsi Standard designation ANSI

SNMG544

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
