Главная Каталог продукции Toolunited 16 201-02 - Square insert SNMG150616-B25 NC3220

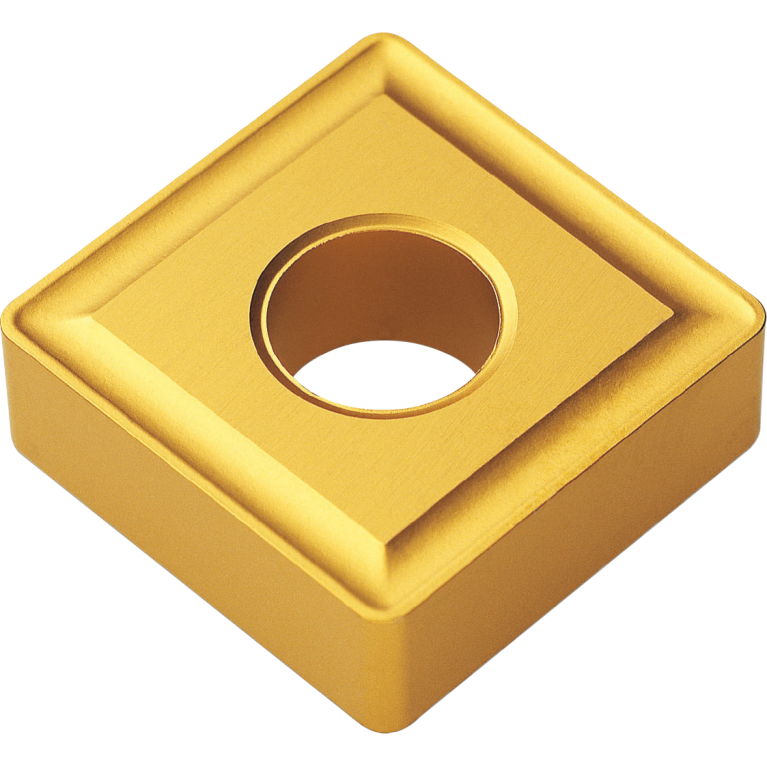

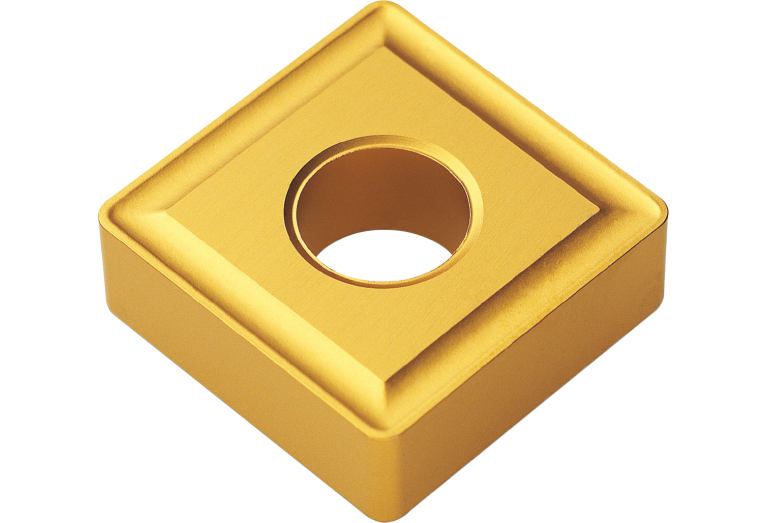

SNMG150616-B25 NC3220

Артикул: 1-02-045211

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

B25

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6.35 mm

Delivery state valid from

6/4/2014

DIN

SN1506 2N

EPSR Insert included angle

90 Degree

FamilyProducts

Turning Insert (Negative)

GRDMFG Grade manufacturers designation

NC3220

GRDPRIO Standard designation of the grade main application

Carbide

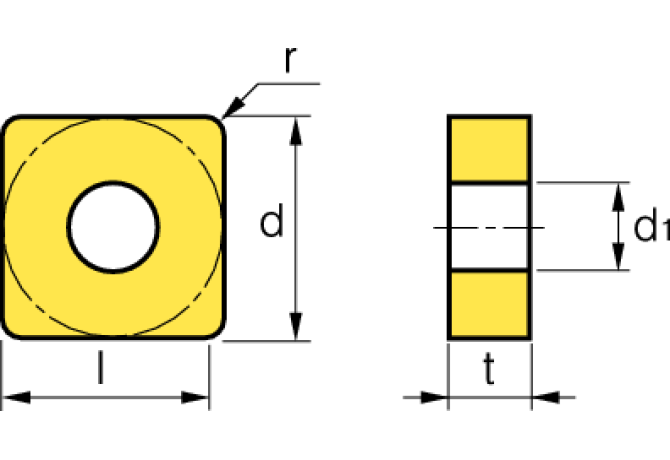

IC Inscribed circle diameter

15.875 mm

ID Technical product number

1-02-045211

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

15.875 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1506 2N

Name Identifying order number

SNMG150616-B25 NC3220

RE Corner radius

1.6 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMG150616

STDDESAnsi Standard designation ANSI

SNMG544

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.019 kg
