Главная Каталог продукции Toolunited 16 201-02 - Square insert SNMG150612 TN5120

SNMG150612 TN5120

Артикул: 122214736

В наличии

В корзину

Описание

Характеристики

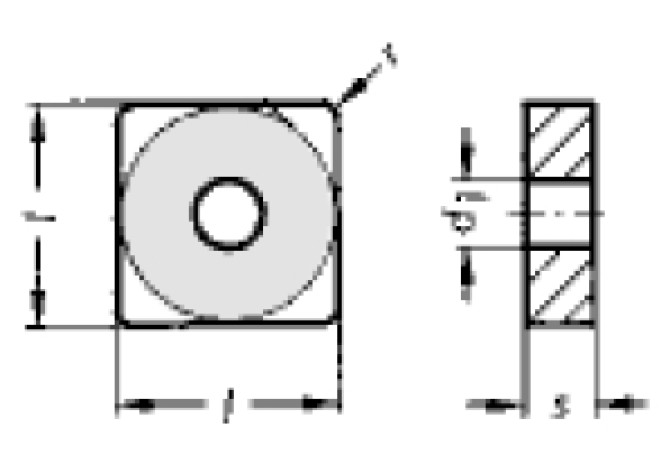

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6.35 mm

Delivery state valid from

6/16/2013

DIN

SN1506122N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert SNM

GRDMFG Grade manufacturers designation

TN5120

IC Inscribed circle diameter

15.875 mm

ID Technical product number

122214736

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

15.875 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1506122N

Materials

Name Identifying order number

SNMG150612 TN5120

NameAnsi Identifying order number inch alternative

SNMG543 TN5120

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMG150612

STDDESAnsi Standard designation ANSI

SNMG543

TCINS Tolerance class insert

Working process

DDA - External turning
