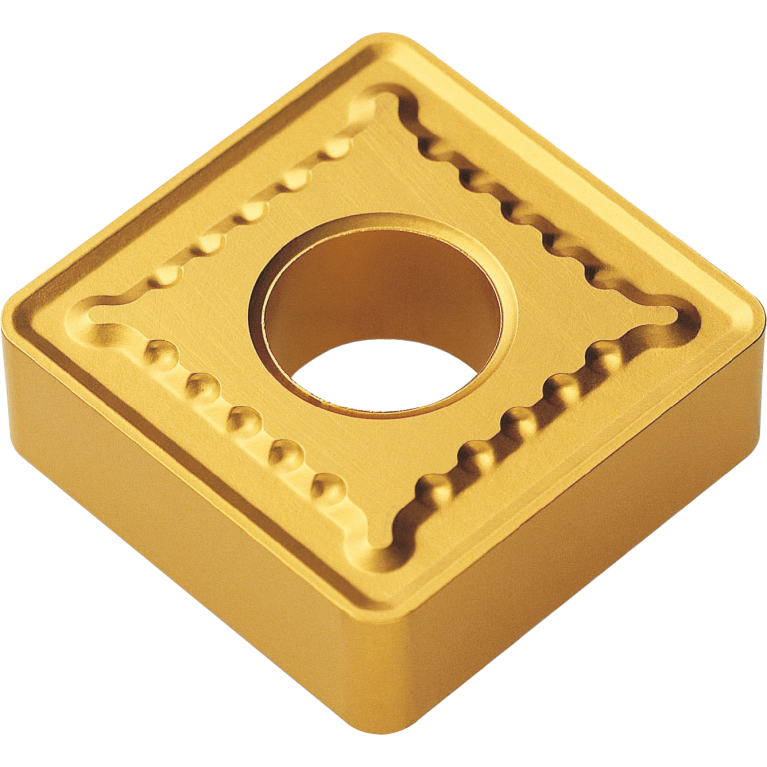

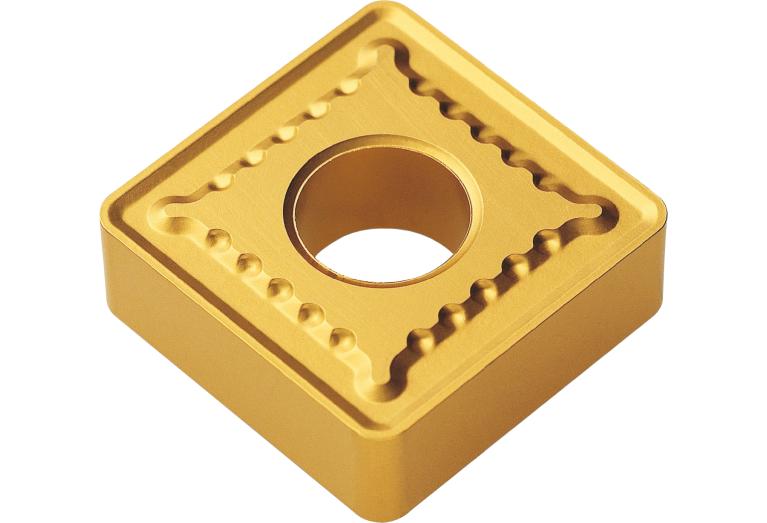

SNMG150612-GR NC3030

Артикул: 1-02-023579

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

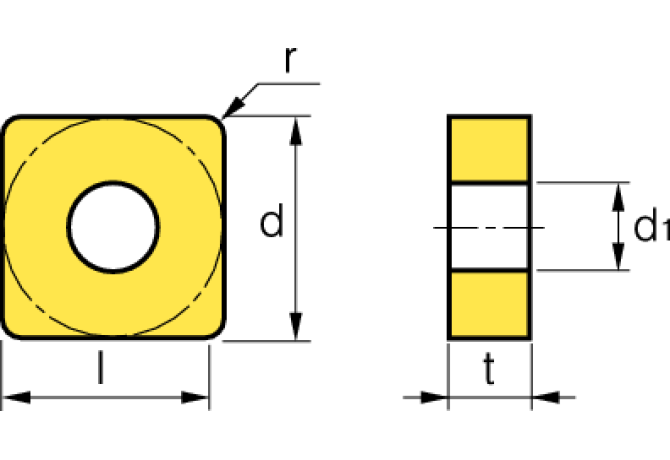

D1 Fixing hole diameter

6.35 mm

Delivery state valid from

6/4/2014

DIN

SN1506 2N

EPSR Insert included angle

90 Degree

FamilyProducts

Turning Insert (Negative)

GRDMFG Grade manufacturers designation

NC3030

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

15.875 mm

ID Technical product number

1-02-023579

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

15.875 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1506 2N

Name Identifying order number

SNMG150612-GR NC3030

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMG150612

STDDESAnsi Standard designation ANSI

SNMG543

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0186 kg
