SNMG120408 AP15TF

Артикул: SNMG120408 AP15TF

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating / Покрытие

(Ti, Al)N

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

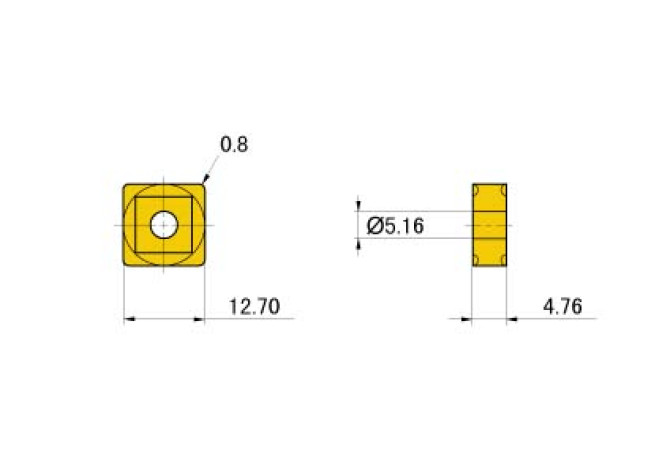

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

4/1/2022

DIN

SN1204082N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for turning SNMG

GRD2ND Standard designation of the grade 2nd application

HC-M20-M40

GRD3RD Standard designation of the grade 3rd application

HC-K20-K30

GRDMFG Grade manufacturers designation

AP15TF

GRDPRIO Standard designation of the grade main application

HC-P20-P40

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SNMG120408 AP15TF

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1204082N

Materials

P,M,K,H

Name Identifying order number

SNMG120408 AP15TF

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNMG120408

STDDESAnsi Standard designation ANSI

SNMG432

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.102 kg
