Главная Каталог продукции Toolunited 16 201-02 - Square insert SNMG120404 NX3035

SNMG120404 NX3035

Артикул: SNMG120404 NX3035

В наличии

В корзину

Описание

Характеристики

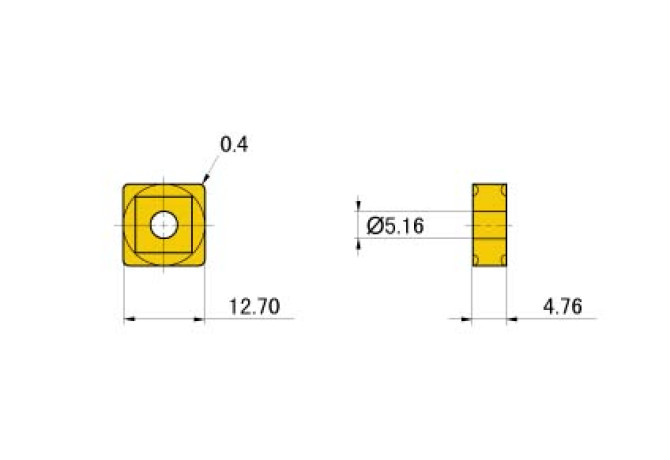

AN Clearance angle major

0 Degree

BN Face land width

0.25 mm

CB Chip breaker face count

2 - With chip breaker on both sides

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

4/1/2022

DIN

SN1204042N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for turning SNMG

GAN Insert rake angle

15 Degree

GB Face land angle

15 Degree

GRD2ND Standard designation of the grade 2nd application

CT-P20

GRD3RD Standard designation of the grade 3rd application

CT-P30

GRDMFG Grade manufacturers designation

NX3035

GRDPRIO Standard designation of the grade main application

CT-P10

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1204042N

Materials

Name Identifying order number

SNMG120404 NX3035

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNMG120404

STDDESAnsi Standard designation ANSI

SNMG431

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
