SNMG090308 UE6005

Артикул: SNMG090308 UE6005

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

4/1/2022

DIN

SN0903082N

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT, TURNING, COATED

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P10

GRD3RD Standard designation of the grade 3rd application

HC-K01

GRDMFG Grade manufacturers designation

UE6005

GRDPRIO Standard designation of the grade main application

HC-P01

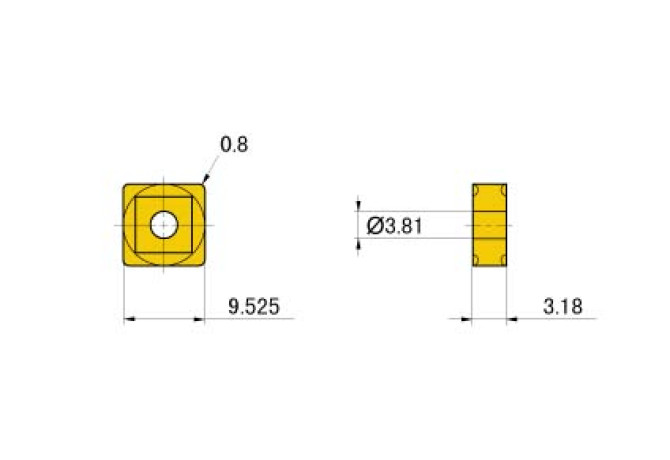

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN0903082N

Materials

P,K

Name Identifying order number

SNMG090308 UE6005

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SNMG090308

STDDESAnsi Standard designation ANSI

SNMG322

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
