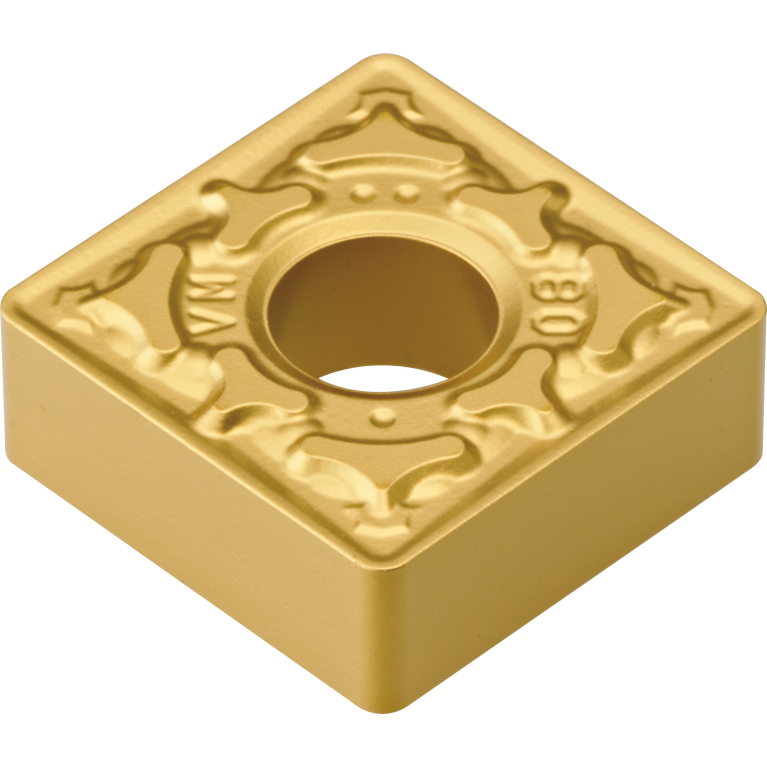

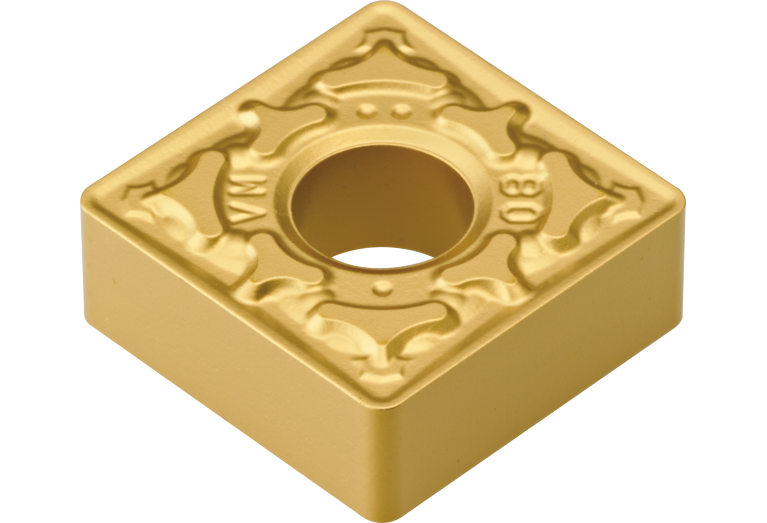

SNMG090304-VM NC6205

Артикул: 1-02-048009

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

SN0903 2N

EPSR Insert included angle

90 Degree

FamilyProducts

Turning Insert (Negative)

GRDMFG Grade manufacturers designation

NC6205

GRDPRIO Standard designation of the grade main application

Carbide

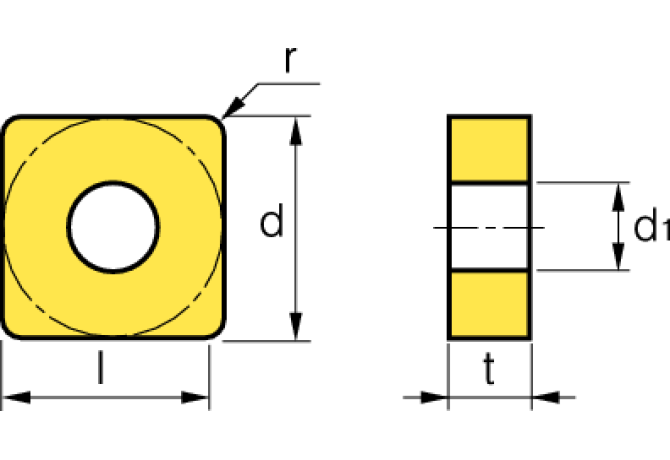

IC Inscribed circle diameter

9.525 mm

ID Technical product number

1-02-048009

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.525 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN0903 2N

Name Identifying order number

SNMG090304-VM NC6205

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SNMG090304

STDDESAnsi Standard designation ANSI

SNMG321

TCINS Tolerance class insert

Working process

No working processes available
