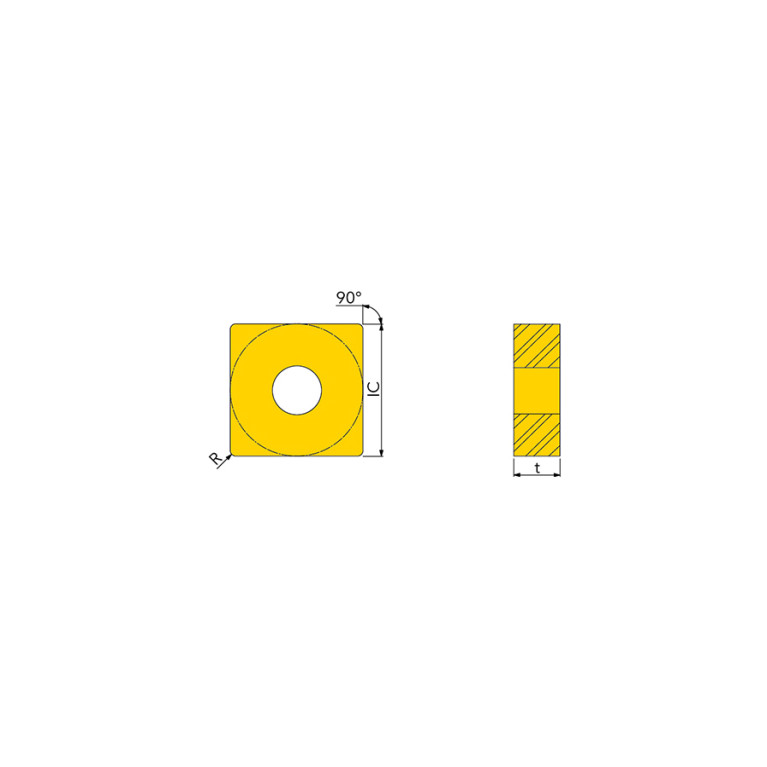

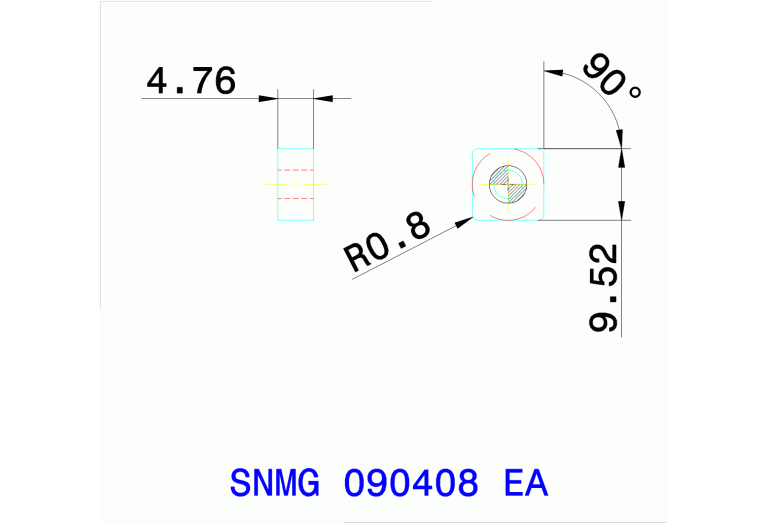

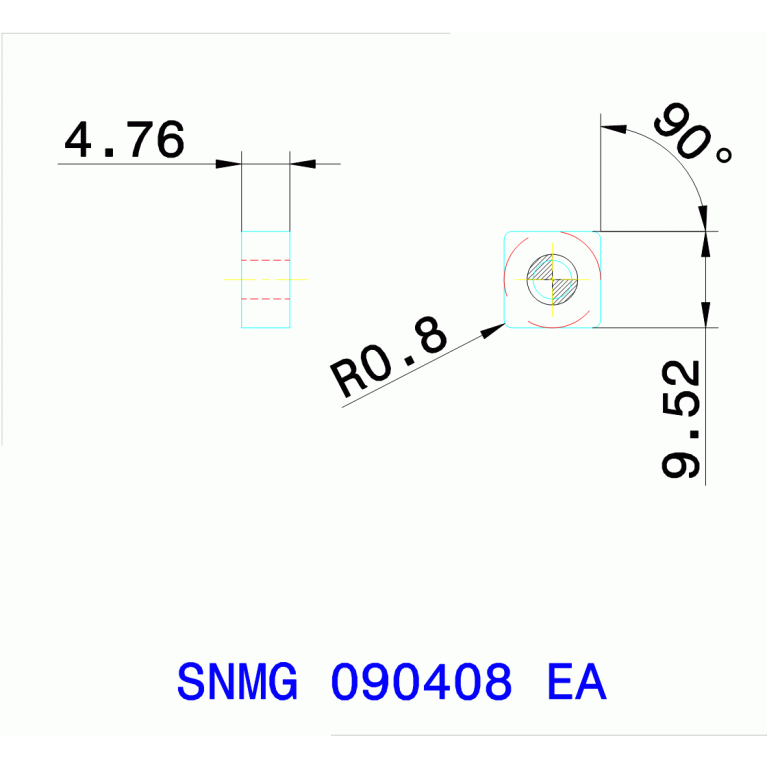

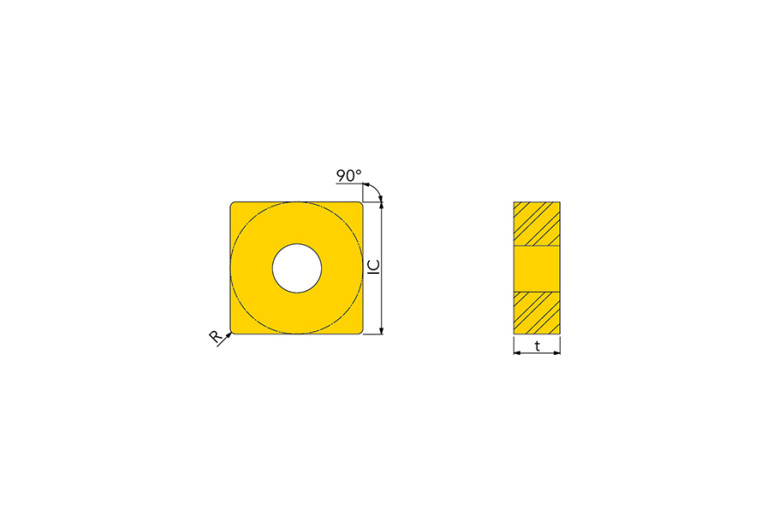

SNMG 090408 EA TT9225

Артикул: 6118445

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

SN0904082N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Negative 90° square inserts for finishing / stainless steel & exotic material

GRD2ND Standard designation of the grade 2nd application

M15-M30

GRD3RD Standard designation of the grade 3rd application

S15-S30

GRDMFG Grade manufacturers designation

TT9225

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6118445

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

LE Cutting edge effective length

0.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN0904082N

MIID Master insert identification

SNMG090408 TT9225

Name Identifying order number

SNMG 090408 EA TT9225

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNMG090408

STDDESAnsi Standard designation ANSI

SNMG332

TCINS Tolerance class insert

Working process

No working processes available
