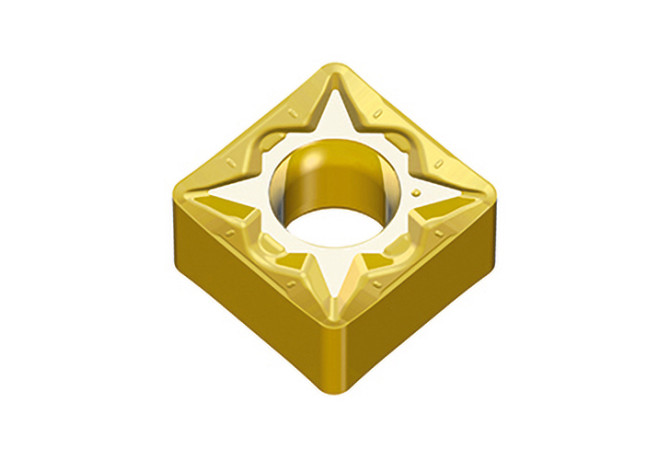

SNMG 090404 FM CT3000

Артикул: 6118174

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

SN0904042N

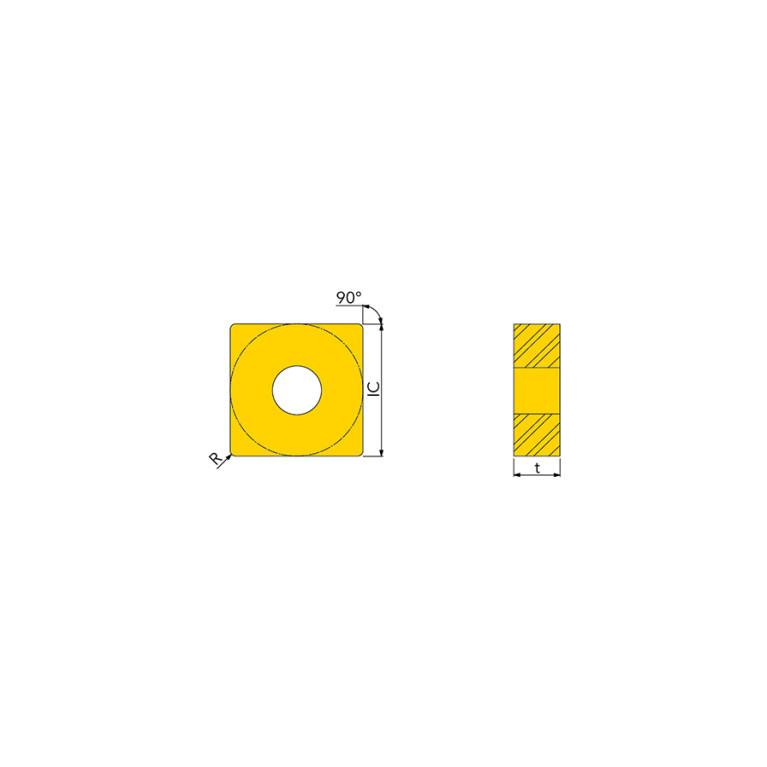

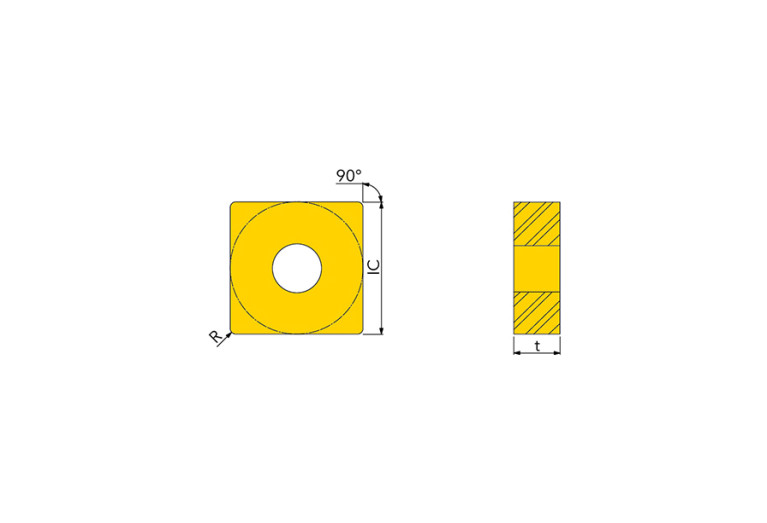

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Negative 90° square inserts for finishing / for medium roughing

GRD2ND Standard designation of the grade 2nd application

M10-M20

GRD3RD Standard designation of the grade 3rd application

K10-K20

GRDMFG Grade manufacturers designation

CT3000

GRDPRIO Standard designation of the grade main application

P10-P20

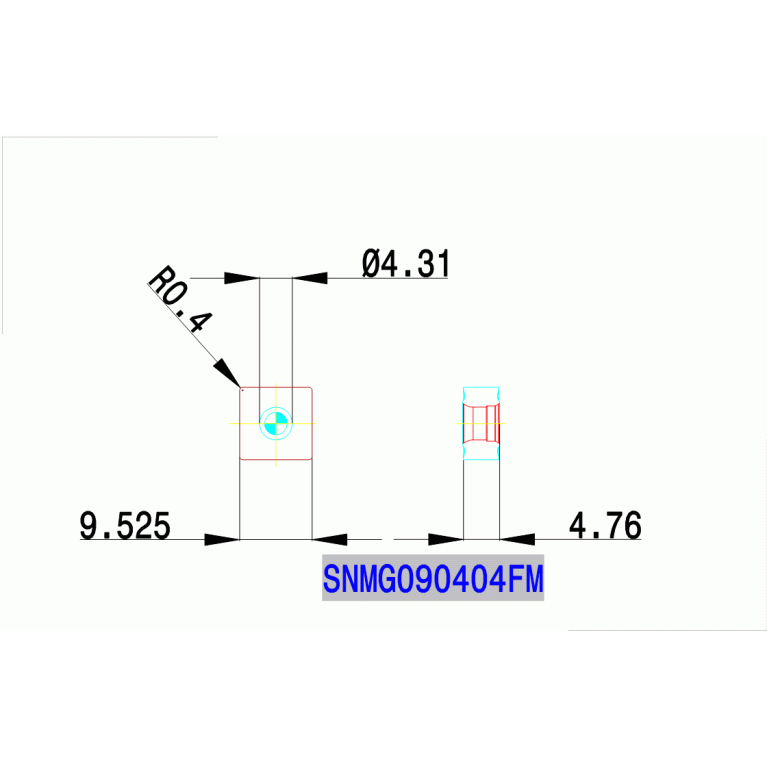

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6118174

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

LE Cutting edge effective length

1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN0904042N

MIID Master insert identification

SNMG090404 CT3000

Name Identifying order number

SNMG 090404 FM CT3000

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNMG090404

STDDESAnsi Standard designation ANSI

SNMG331

TCINS Tolerance class insert

Working process

No working processes available
