SNMG 090404 EA TT5080

Артикул: 6118327

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

SN0904042N

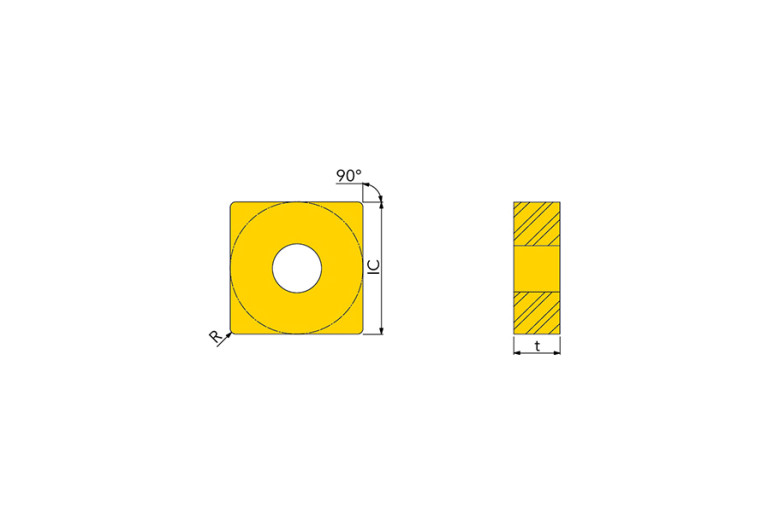

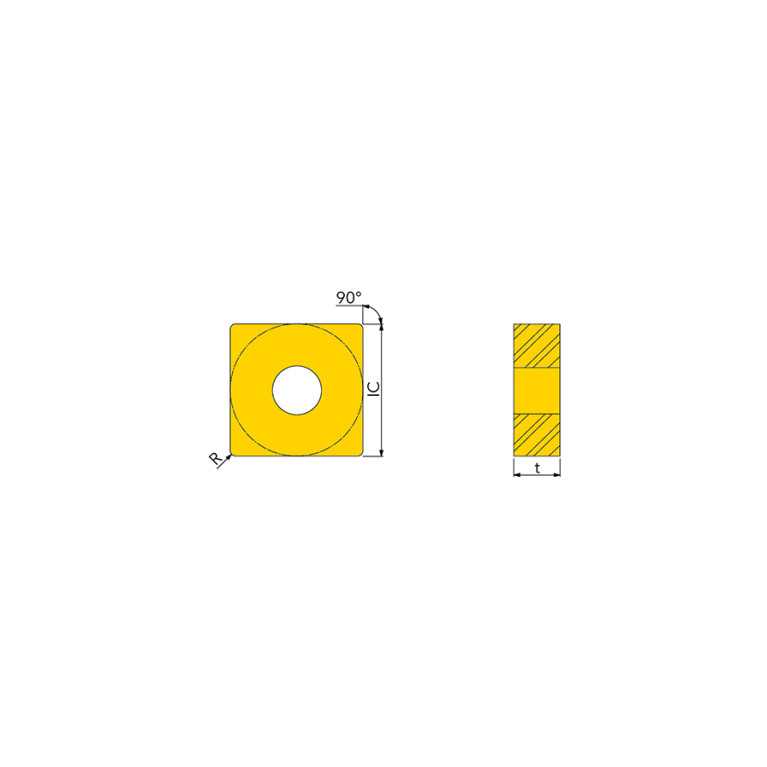

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Negative 90° square inserts for finishing / stainless steel & exotic material

GRD2ND Standard designation of the grade 2nd application

M05-M25

GRD3RD Standard designation of the grade 3rd application

S05-S25

GRDMFG Grade manufacturers designation

TT5080

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6118327

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

LE Cutting edge effective length

0.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN0904042N

MIID Master insert identification

SNMG090404 TT5080

Name Identifying order number

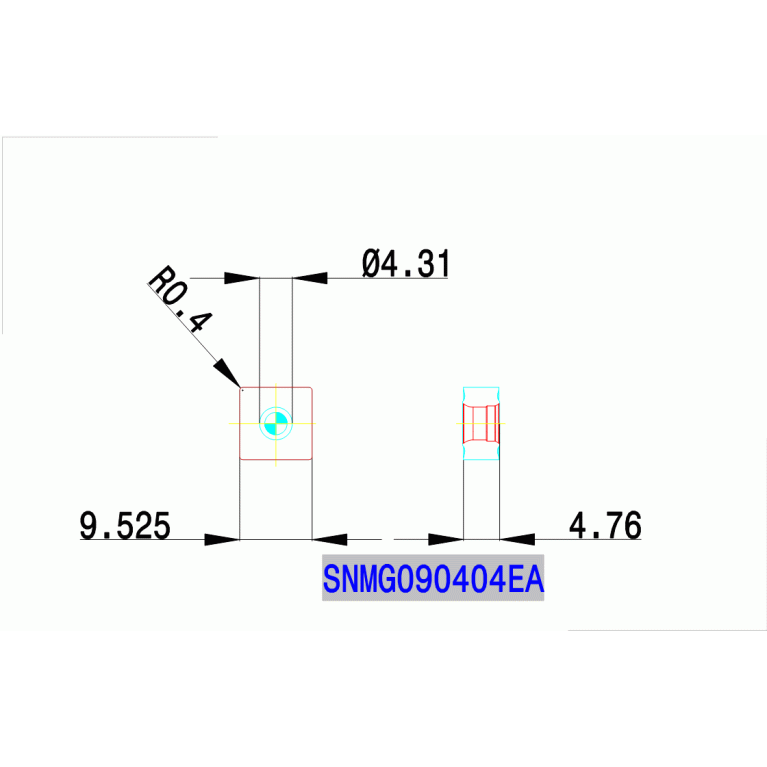

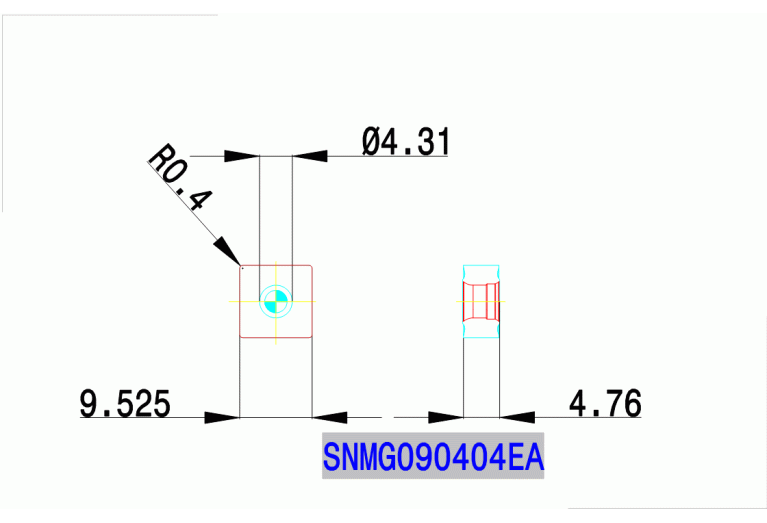

SNMG 090404 EA TT5080

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNMG090404

STDDESAnsi Standard designation ANSI

SNMG331

TCINS Tolerance class insert

Working process

No working processes available
