Главная Каталог продукции Toolunited 16 201-02 - Square insert SNMF43B2G F5020

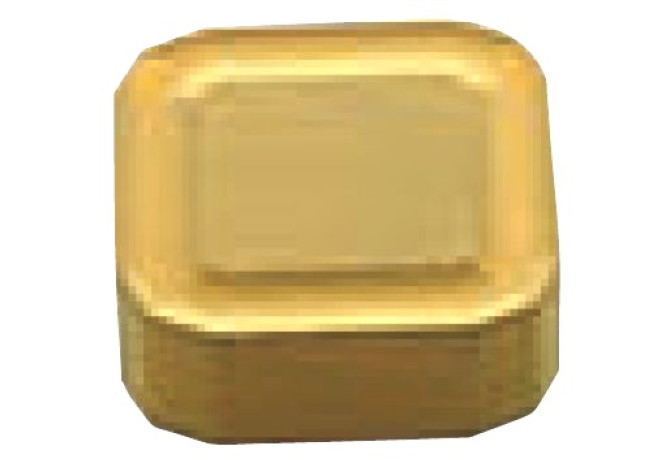

SNMF43B2G F5020

Артикул: SNMF43B2G F5020

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BS Wiper edge length

2 mm

COATN Coating / Покрытие

Besch.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

MI-SN 43B2

EPSR Insert included angle

90 Degree

FamilyProducts

insert for milling

GRDMFG Grade manufacturers designation

F5020

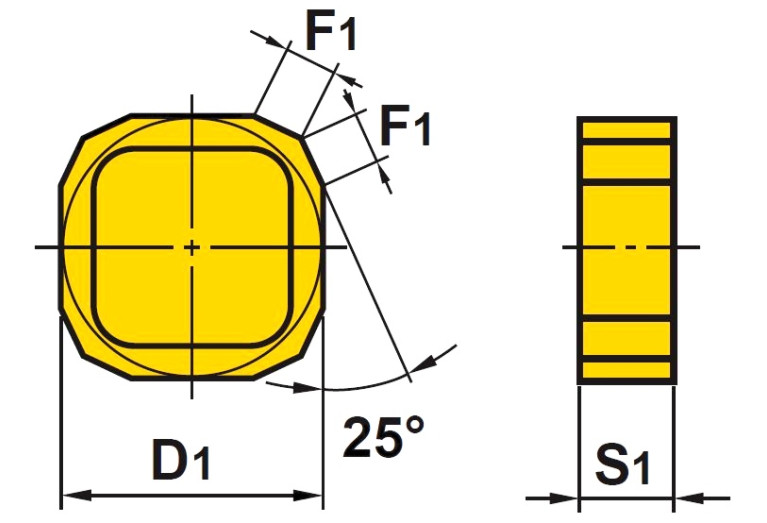

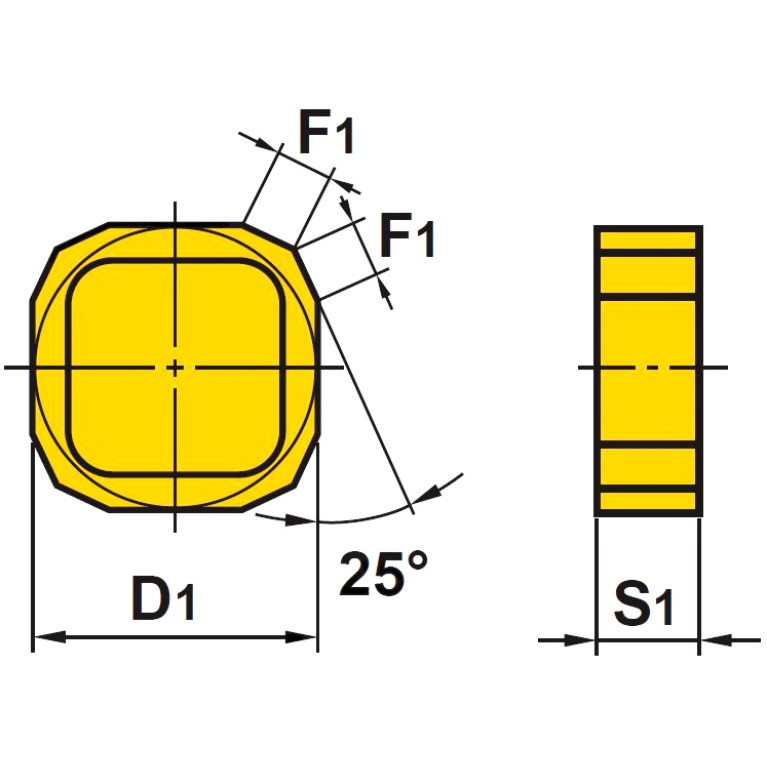

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

25 Degree

L Cutting edge length

12.7 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MI-SN 43B2

Materials

Name Identifying order number

SNMF43B2G F5020

S Insert thickness

4.8 mm

S1 Insert thickness total

4.8 mm

TCINS Tolerance class insert

Working process

F - Milling,FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
