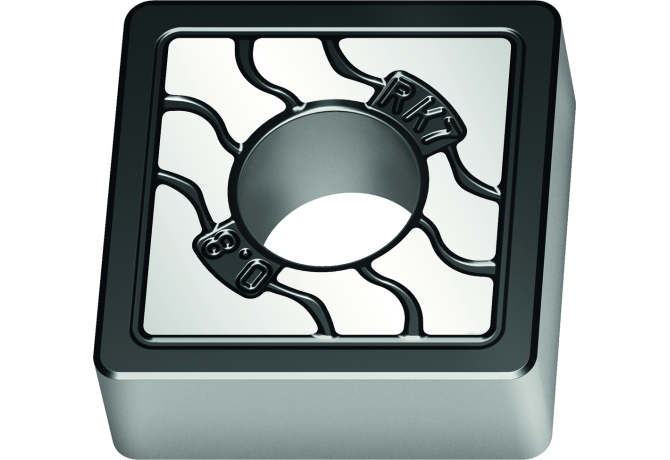

SNMA120416-RK7 WKK10S

SNMA120416-RK7 WKK10S SNMA120416-RK7 WKK10S SNMA120416-RK7 WKK10S

SNMA120416-RK7 WKK10S

Walter
Артикул: 6435095
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
RK7
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating / Покрытие
TiCN+Al2O3+(TiCN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
5.16 mm
Delivery state valid from
12/1/2023
DIN
SN1204162N
EPSR Insert included angle
90 Degree
FamilyProducts
Negative square SNMA
GRDMFG Grade manufacturers designation
WKK10S
IC Inscribed circle diameter
12.7 mm
ID Technical product number
6435095
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$SN1204162NB$$16
ISYC Subclass
201-02 - Square insert
L Cutting edge length
12.7 mm
LOC-03 ISO
ISO$SN1204162NB$$16
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SN1204162N
MIID Master insert identification
SNMA120416 WKK10S
Name Identifying order number
SNMA120416-RK7 WKK10S
NameAnsi Identifying order number inch alternative
SNMA434-RK7 WKK10S
NOI Insert index count
4
RE Corner radius
1.6 mm
S Insert thickness
4.762 mm
S1 Insert thickness total
4.762 mm
STDDES Standard designation
SNMA120416
STDDESAnsi Standard designation ANSI
SNMA434
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.01 kg
