Главная Каталог продукции Toolunited 16 201-02 - Square insert SNK43B2S UTi20T

SNK43B2S UTi20T

Артикул: 114205

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BS Wiper edge length

2 mm

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

MI-SN 43B2

EPSR Insert included angle

90 Degree

FamilyProducts

insert for milling

GRD2ND Standard designation of the grade 2nd application

HW-P20-P30

GRD3RD Standard designation of the grade 3rd application

HW-K20-K30

GRDMFG Grade manufacturers designation

UTi20T

GRDPRIO Standard designation of the grade main application

HW-M20-M30

IC Inscribed circle diameter

12.7 mm

ID Technical product number

114205

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

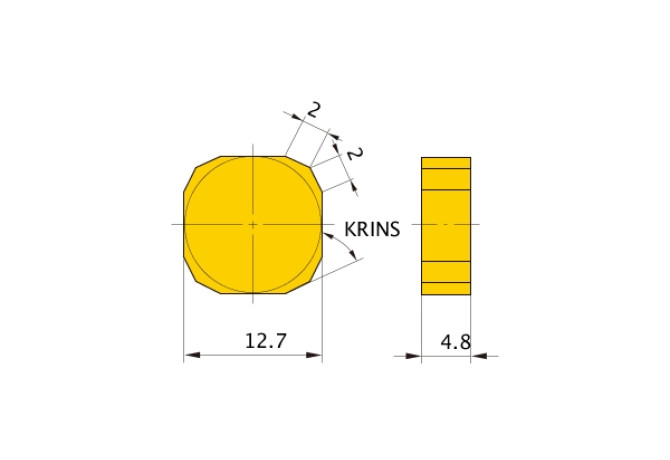

KRINS Cutting edge angle major

25 Degree

L Cutting edge length

12.7 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MI-SN 43B2

Materials

P,K

Name Identifying order number

SNK43B2S UTi20T

S Insert thickness

4.8 mm

S1 Insert thickness total

4.8 mm

STDDESAnsi Standard designation ANSI

SNK43B2S

TCINS Tolerance class insert

K - Cold formed

Working process

F - Milling,FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
