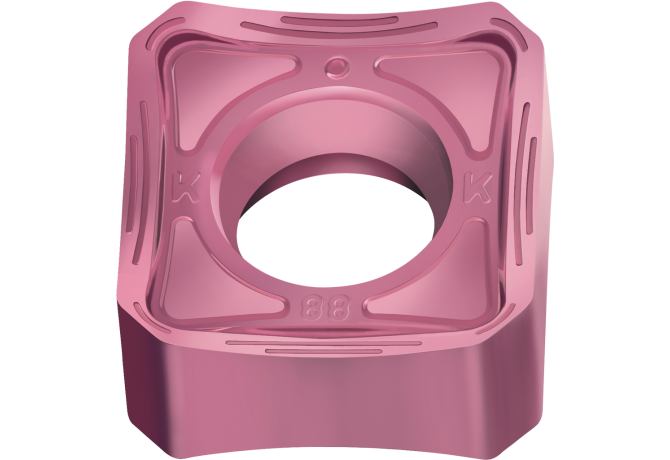

SNHX1205ANN-K88 WXN15

Артикул: 5623813

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BS Wiper edge length

1.5 mm

CBMD Chip breaker manufacturers designation

K88

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

TiCN+

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6.1 mm

Delivery state valid from

12/1/2023

DIN

W-SN1205$$3NBAN$$

EPSR Insert included angle

90 Degree

FamilyProducts

Negative square SNHX

GRDMFG Grade manufacturers designation

WXN15

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5623813

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$SN1205$$3NBAN$$

ISYC Subclass

201-02 - Square insert

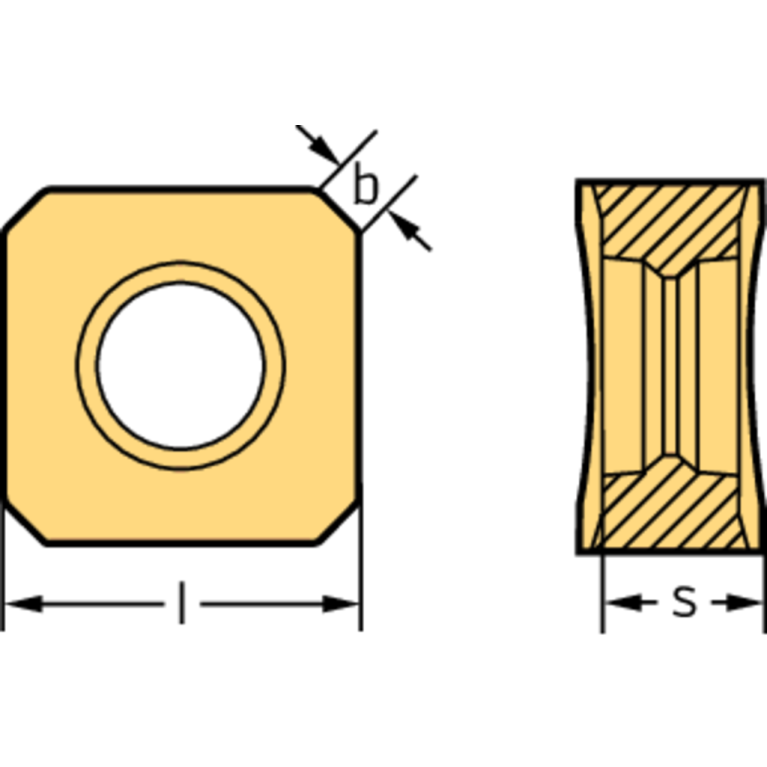

L Cutting edge length

12.7 mm

LOC-03 ISO

WR$$SN1205$$3NBAN$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-SN1205$$3NBAN$$

Name Identifying order number

SNHX1205ANN-K88 WXN15

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

5.537 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNHX1205ANN

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

FPL - Face milling

WT Weight of item

0.009 kg
