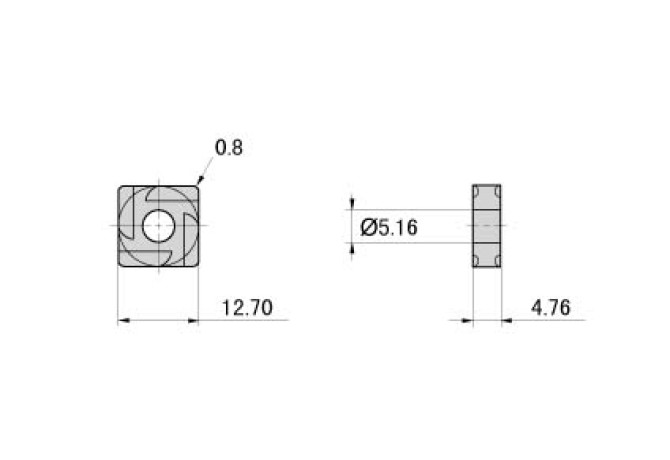

SNGG120408R HTi10

Артикул: SNGG120408R HTi10

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

BN Face land width

0.25 mm

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

R/L

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

4/1/2022

DIN

SN1204082R

EPSR Insert included angle

90 Degree

FamilyProducts

insert for turning SNGG, medium cutting

GAN Insert rake angle

14 Degree

GRDMFG Grade manufacturers designation

HTi10

GRDPRIO Standard designation of the grade main application

HW-K10

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1204082R

Materials

K,N,S,H

Name Identifying order number

SNGG120408R HTi10

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNGG120408R

STDDESAnsi Standard designation ANSI

SNGG432R

TCINS Tolerance class insert

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning
