Главная Каталог продукции Toolunited 16 201-02 - Square insert SNGG120408R CN2000

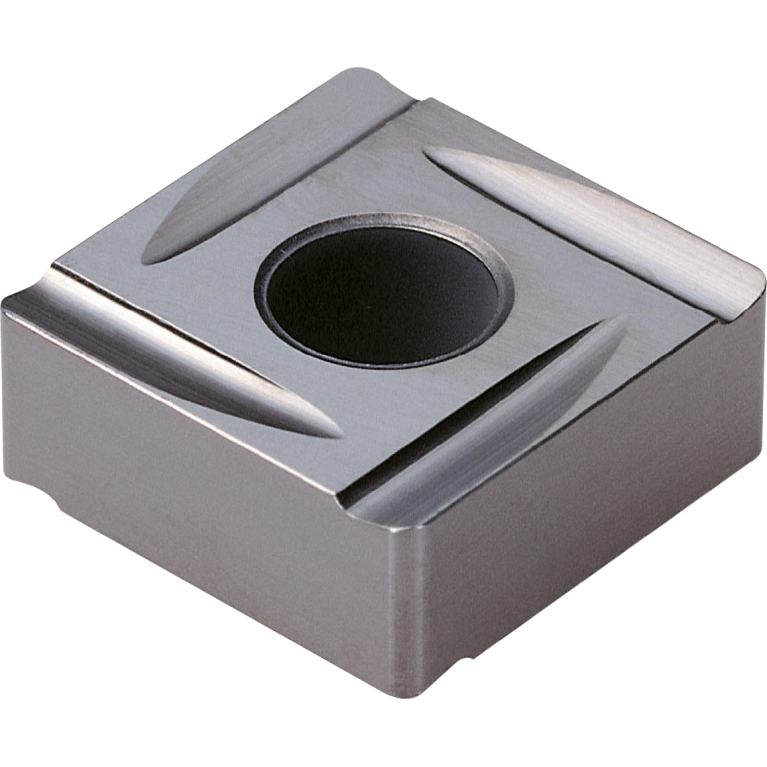

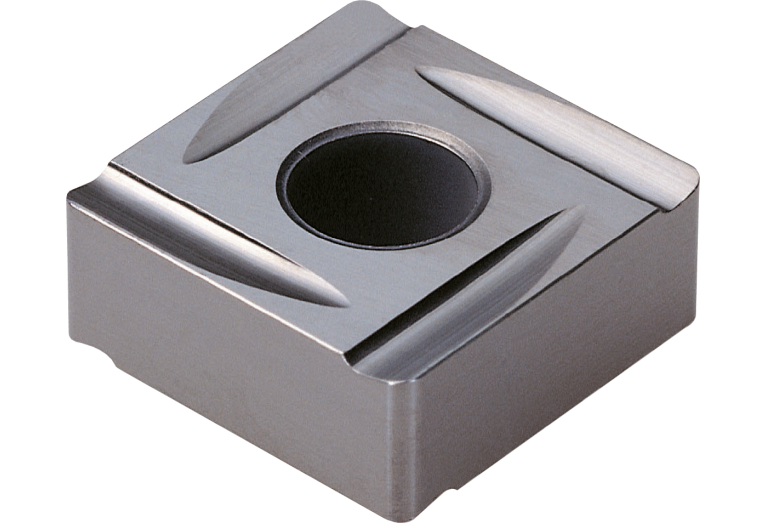

SNGG120408R CN2000

Артикул: 1-03-017396

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

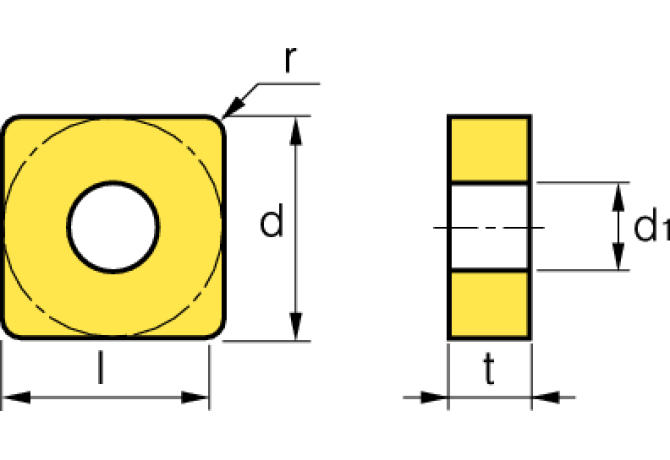

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

6/24/2014

DIN

SN1204 2R

EPSR Insert included angle

90 Degree

FamilyProducts

Turning Insert (Negative)

GRDMFG Grade manufacturers designation

CN2000

GRDPRIO Standard designation of the grade main application

Cermet

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-03-017396

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1204 2R

Name Identifying order number

SNGG120408R CN2000

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNGG120408R

STDDESAnsi Standard designation ANSI

SNGG432R

TCINS Tolerance class insert

Working process

No working processes available
