Главная Каталог продукции Toolunited 16 201-02 - Square insert SNGG090304L HTi10

SNGG090304L HTi10

Артикул: SNGG090304L HTi10

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

BN Face land width

0.25 mm

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

R/L

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

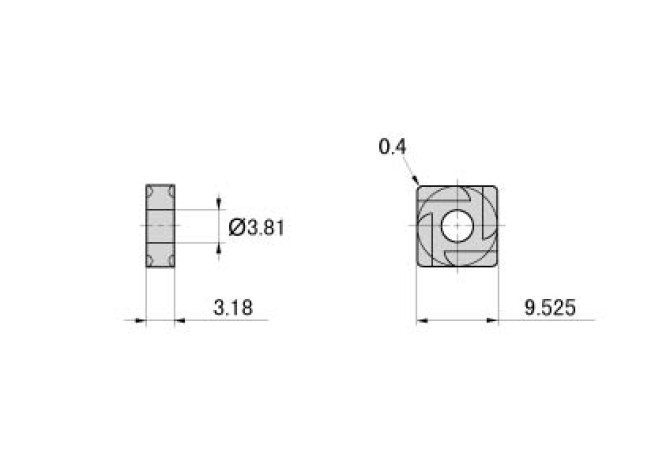

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

4/1/2022

DIN

SN0903042L

EPSR Insert included angle

90 Degree

FamilyProducts

insert for turning SNGG, medium cutting

GAN Insert rake angle

14 Degree

GRDMFG Grade manufacturers designation

HTi10

GRDPRIO Standard designation of the grade main application

HW-K10

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN0903042L

Materials

K,N,S,H

Name Identifying order number

SNGG090304L HTi10

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SNGG090304L

STDDESAnsi Standard designation ANSI

SNGG321L

TCINS Tolerance class insert

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning
