SNGG090304L HTi05T

Артикул: SNGG090304L HTi05T

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

R/L

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

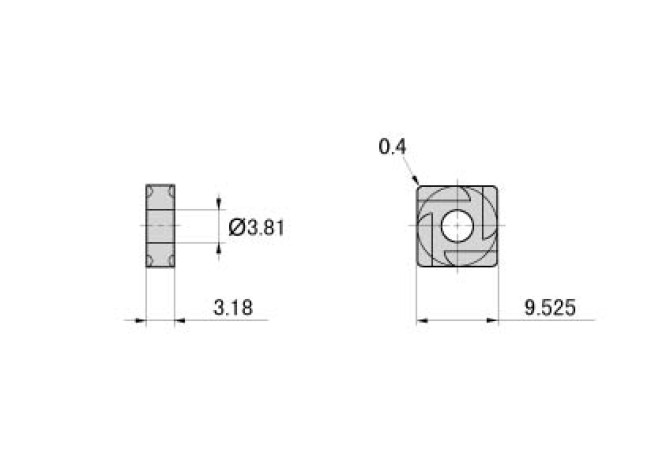

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

4/1/2022

DIN

SN0903042L

EPSR Insert included angle

90 Degree

FamilyProducts

insert for turning SNGG, medium cutting

GRDMFG Grade manufacturers designation

HTi05T

GRDPRIO Standard designation of the grade main application

HW-K01

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN0903042L

Materials

Name Identifying order number

SNGG090304L HTi05T

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SNGG090304L

STDDESAnsi Standard designation ANSI

SNGG321L

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
