Главная Каталог продукции Toolunited 16 201-02 - Square insert SNGA090308 HTi05T

SNGA090308 HTi05T

Артикул: SNGA090308 HTi05T

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

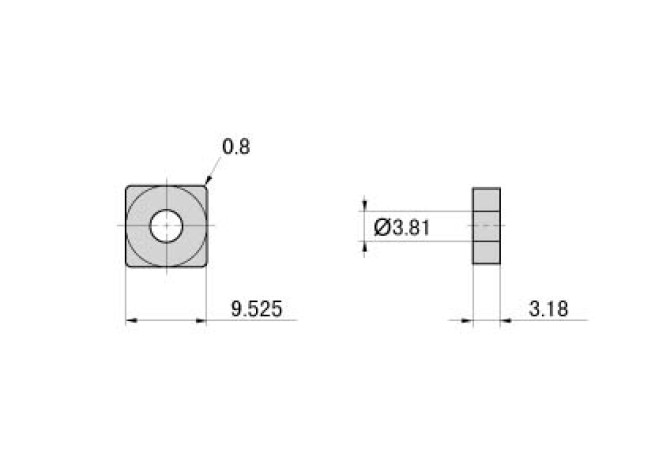

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

4/1/2022

DIN

SN0903082N

EPSR Insert included angle

90 Degree

FamilyProducts

insert for turning SNGA

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

HTi05T

GRDPRIO Standard designation of the grade main application

HW-K01

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN0903082N

Materials

Name Identifying order number

SNGA090308 HTi05T

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SNGA090308

STDDESAnsi Standard designation ANSI

SNGA322

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning,F - Milling,FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
