Главная Каталог продукции Toolunited 16 201-02 - Square insert SNEX1206ANN-W PC5300

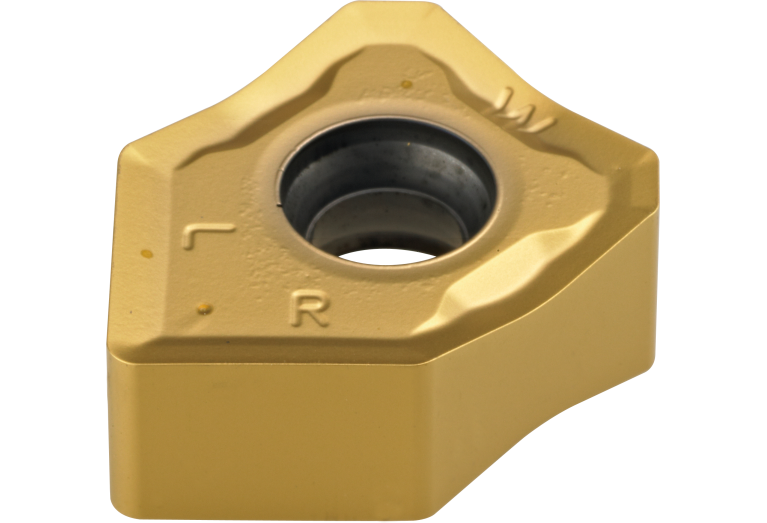

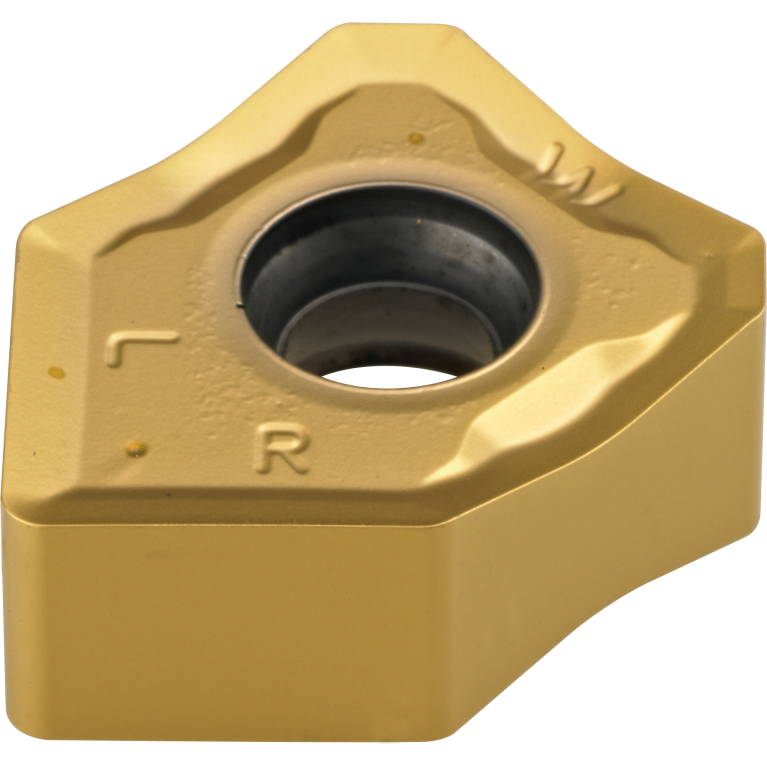

SNEX1206ANN-W PC5300

Артикул: 1-02-045591

В наличии

В корзину

Описание

Характеристики

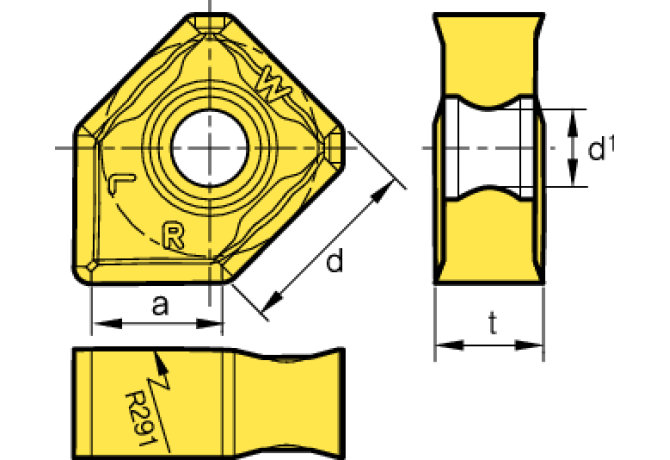

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

BS Wiper edge length

7.6 mm

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.5 mm

Delivery state valid from

6/4/2014

DIN

SN1206AN7N

EPSR Insert included angle

90 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

PC5300

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-02-045591

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1206AN7N

Name Identifying order number

SNEX1206ANN-W PC5300

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNEX1206ANN

TCINS Tolerance class insert

Working process

F - Milling
