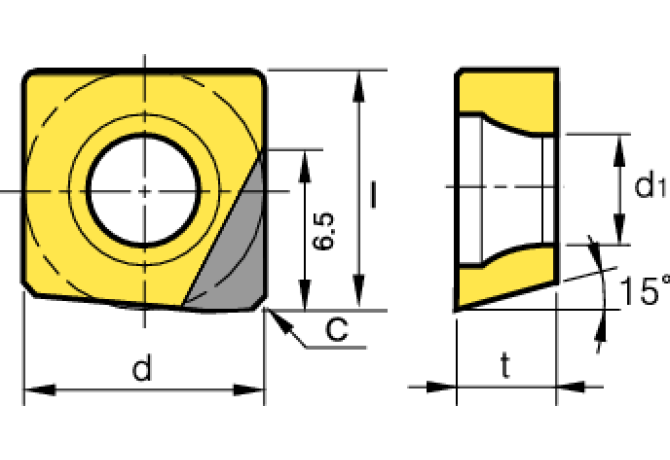

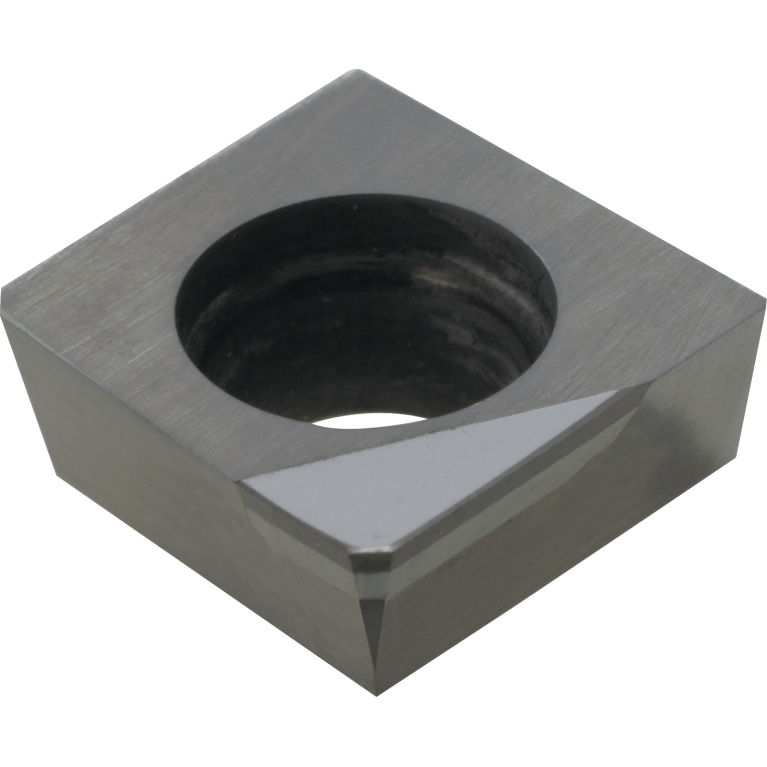

SNEW09T3ADTR-NAF DP200

Артикул: 6-01-015583

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

15 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

NAF

CECC Cutting edge condition code

T - Chamfered

CHW Corner chamfer width

0.5 mm

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

SN09T3AD3R

EPSR Insert included angle

90 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

DP200

GRDPRIO Standard designation of the grade main application

PCD

ID Technical product number

6-01-015583

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN09T3AD3R

Name Identifying order number

SNEW09T3ADTR-NAF DP200

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SNEW09T3ADTR

TCINS Tolerance class insert

Working process

F - Milling
